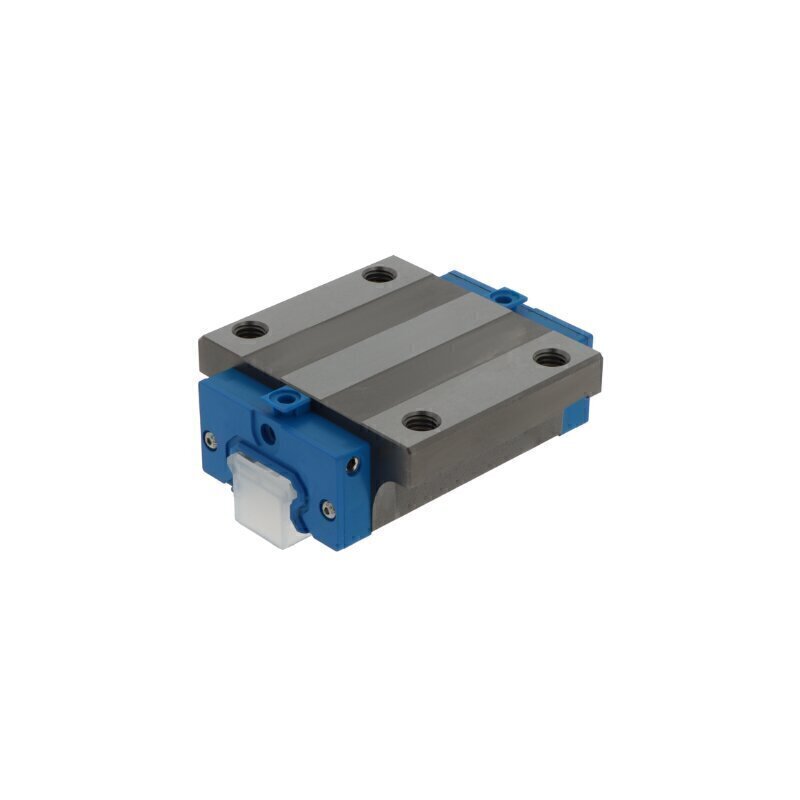

R165361310 KWC-065-FLS-C1-H-2 (CS) Bosch Rexroth Carriage
R165361310 KWC-065-FLS-C1-H-2 (CS) Bosch Rexroth Carriage
This heavy-duty precision linear carriage from Bosch Rexroth is engineered to deliver exceptional performance in demanding industrial applications requiring maximum load capacity and extended travel distances. Part of the prestigious 65 series lineup, this flange carriage combines robust engineering with precision accuracy, making it the ideal solution for systems demanding high-capacity linear motion with minimal deflection over long operational ranges.
Key Specifications:
- Series: 65 series (heavy-duty, high-capacity configuration)
- Design Type: Flange carriage in long design version
- Rolling Elements: Ball type with double row arrangement for balanced load distribution and enhanced load-bearing capacity
- Preload: Light preload for smooth operation while maintaining precision under substantial loads
- Tolerance Class: H (High-Precision Class) for superior positioning accuracy
- Material: Carbon Steel for exceptional durability and strength in demanding environments
- Sealing: End seals for effective contamination protection during extended operational cycles
- Operating Temperature Range: -10 to +100°C
- Lubrication: Relubrication capable via integral lubrication nipple for extended service life and reduced maintenance intervals
- Ball Chain: Without ball chain
Ideal Applications:
The 65 series long flange carriage design is particularly well-suited for:
- Heavy-duty industrial machinery and production equipment
- Large-format precision positioning systems
- High-capacity automation and transfer line systems
- Metal working and machine tool applications requiring extended travel ranges
- Material handling systems with substantial load requirements
- Press and forming equipment with precision requirements
- Large-scale assembly and manufacturing operations
- Industrial robotics and handling systems requiring long-stroke capability
Performance Advantages:
With its combination of heavy-duty 65 series capacity, extended long-design configuration, high-precision tolerances, and smooth double-row ball operation, this Bosch Rexroth carriage delivers exceptional linear motion performance for large-scale industrial applications demanding reliability, accuracy, and sustained high-load performance.
