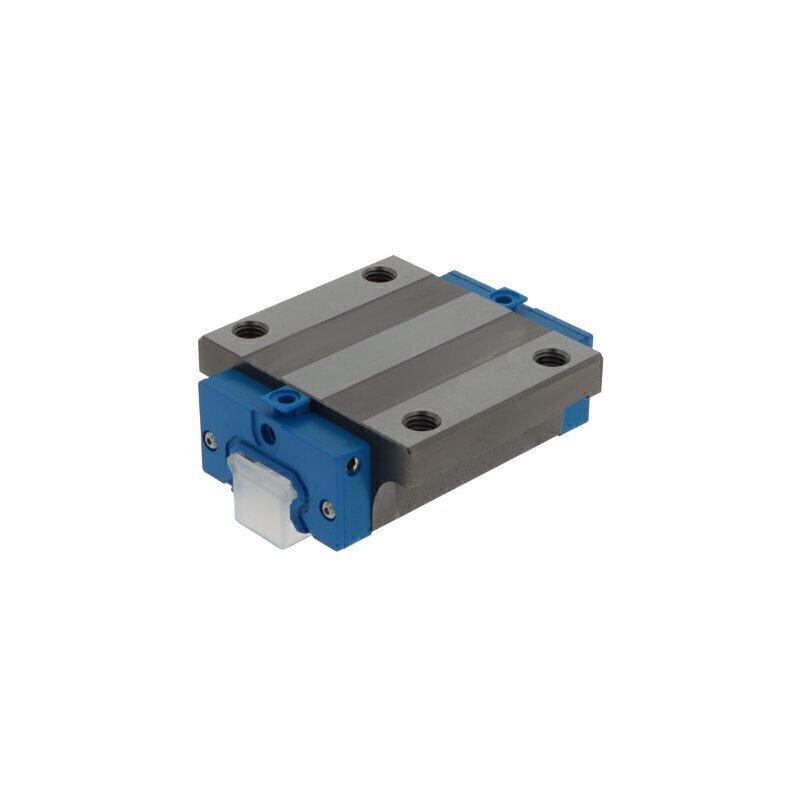

R165342220 KWD-045-FLS-C2-P-1 (CS) Bosch Rexroth Carriage
R165342220 KWD-045-FLS-C2-P-1 (CS) Bosch Rexroth Carriage
This precision flange carriage from Bosch Rexroth is engineered to deliver reliable linear motion performance in demanding industrial applications. Part of the 45 series, the KWD-045-FLS-C2-P-1 combines a long design configuration with precision engineering, making it an excellent choice for systems requiring accurate, smooth linear travel with balanced load capacity and rigidity.
Key Specifications:
- Design: Flange carriage with long design configuration
- Series: 45 series
- Rolling Elements: Ball type in double row arrangement for smooth, precise motion and reliable performance
- Preload: Medium preload for optimal balance between rigidity and smooth operation
- Tolerance Class: P (Precision Class) for superior accuracy and repeatable positioning
- Material: Carbon steel construction for durability and reliable performance
- Seal Type: End seals for effective contamination protection
- Operating Temperature: -10 to +100°C
- Lubrication: Relubrication capable via integrated lubrication nipple for extended service life and reduced maintenance intervals
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is well-suited for automated machinery, precision transfer systems, machine tools, and industrial equipment where consistent positioning accuracy and smooth linear motion are essential. The double-row ball arrangement with medium preload provides excellent precision and smooth travel characteristics, making it particularly advantageous for applications requiring precise repeatability, moderate to high-speed operations, and reliable performance in temperature-controlled environments.
Maintenance Advantage:
The relubrication capability extends service life and minimizes downtime by allowing easy maintenance through the dedicated lubrication nipple, ensuring optimal performance and reliability throughout the product lifecycle.
