Quick Code: BB-518852

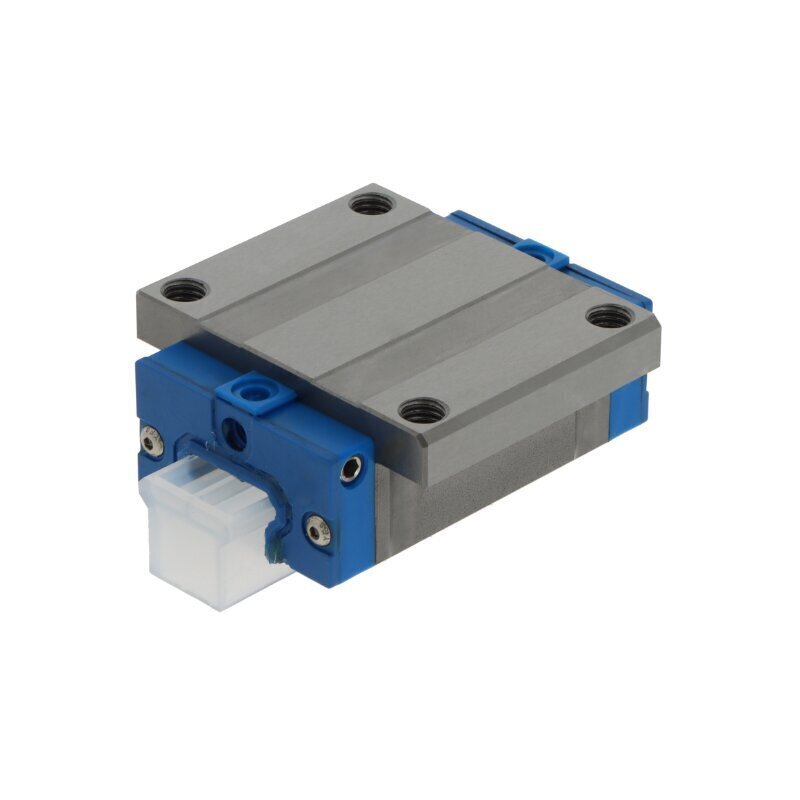

R165111322 KWD-015-FNS-C1-H-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
H (High-Precision Class)
Type of rolling elements
Balls
Version
Standard version
Reference
R165111322KWD015FNSC1H1
Additional Reference:
10131096
Quick Order Code
BB-518852
Product Description
R165111322 KWD-015-FNS-C1-H-1 (CS) Bosch Rexroth Carriage
This precision-engineered flange carriage from Bosch Rexroth delivers reliable linear motion performance for demanding industrial applications. The KWD-015-FNS-C1-H-1 model combines robust carbon steel construction with advanced bearing technology to ensure smooth, accurate operation across a wide temperature range.
Key Specifications:
- Design: Flange carriage configuration for versatile mounting options
- Series: 15 series – ideal for compact to mid-range linear motion systems
- Tolerance Class: H (High-Precision) for superior accuracy requirements
- Rolling Elements: Ball bearing with double row arrangement for optimal load distribution
- Preload: Light preload for smooth running and reduced friction
- Material: Carbon steel construction for durability and strength
- Ball Chain: Integrated ball chain for enhanced guidance and stability
- Sealing: End seals to protect against contamination
- Temperature Range: Operates reliably from -10 to +100°C
- Maintenance: Relubrication capability via dedicated lubrication nipple for extended service life
Ideal Applications:
This carriage is well-suited for precision positioning systems, manufacturing automation, CNC machinery, and linear motion assemblies requiring high-precision performance with minimal maintenance downtime.
