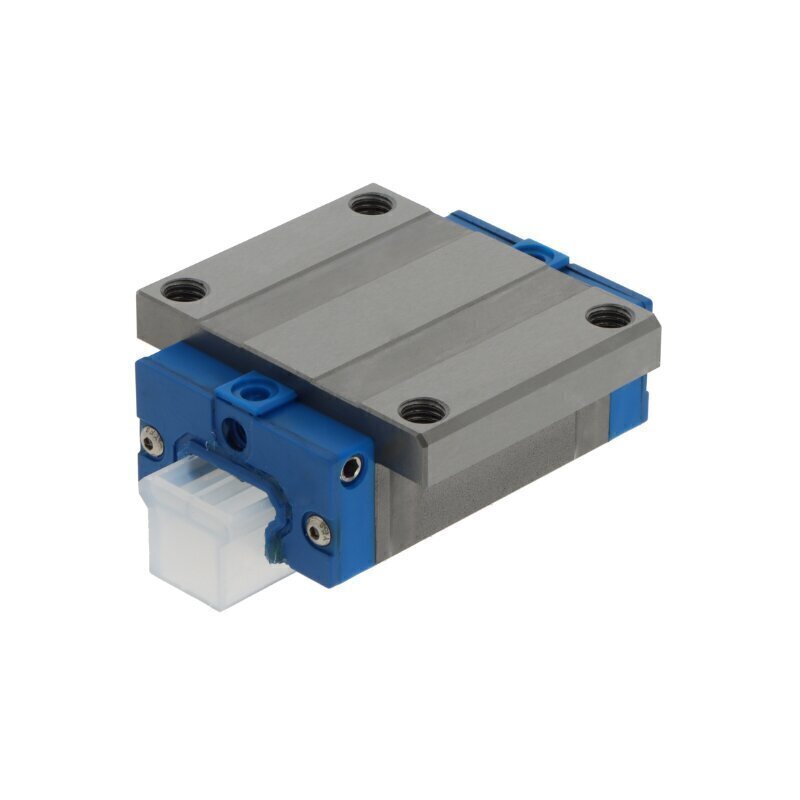

R163119320 KWD-015-FNS-C0-H-1 (AL) Bosch Rexroth Carriage
R163119320 KWD-015-FNS-C0-H-1 (AL) Bosch Rexroth Carriage
This compact precision linear carriage from Bosch Rexroth is engineered for applications requiring high accuracy in a lightweight, space-constrained design. The KWD-015-FNS-C0-H-1 model delivers reliable linear motion performance with exceptional precision, making it an ideal choice for automation systems, precision machinery, and positioning applications where weight reduction and compact installation are essential.
Key Specifications:
- Series: 15 series – compact design optimized for lightweight and space-efficient linear motion applications
- Design: Flange carriage configuration for direct mounting to precision linear shafts and rails
- Rolling Elements: Double-row ball bearings for smooth, consistent linear motion with minimal friction
- Preload: Without preload – ideal for applications where lower friction and smooth operation are prioritized
- Material: Aluminium construction providing lightweight durability while maintaining strength and load-bearing capability
- Tolerance Class: H (High-Precision Class) – designed for applications requiring enhanced accuracy and tight tolerances
- Sealing: End seals to provide reliable protection against dust, contaminants, and external debris
- Temperature Range: Operates reliably from -10 to +100°C for diverse environmental conditions
- Lubrication: Can be relubricated via integrated lubrication nipple for extended service life and optimal performance
- Ball Chain: Without ball chain
Applications:
This high-precision carriage is ideal for use in compact automation systems, precision assembly equipment, lightweight robotic applications, semiconductor processing machinery, laboratory instrumentation, and other demanding positioning applications where superior accuracy, lightweight construction, and reliable performance are essential.
