Quick Code: BB-523926

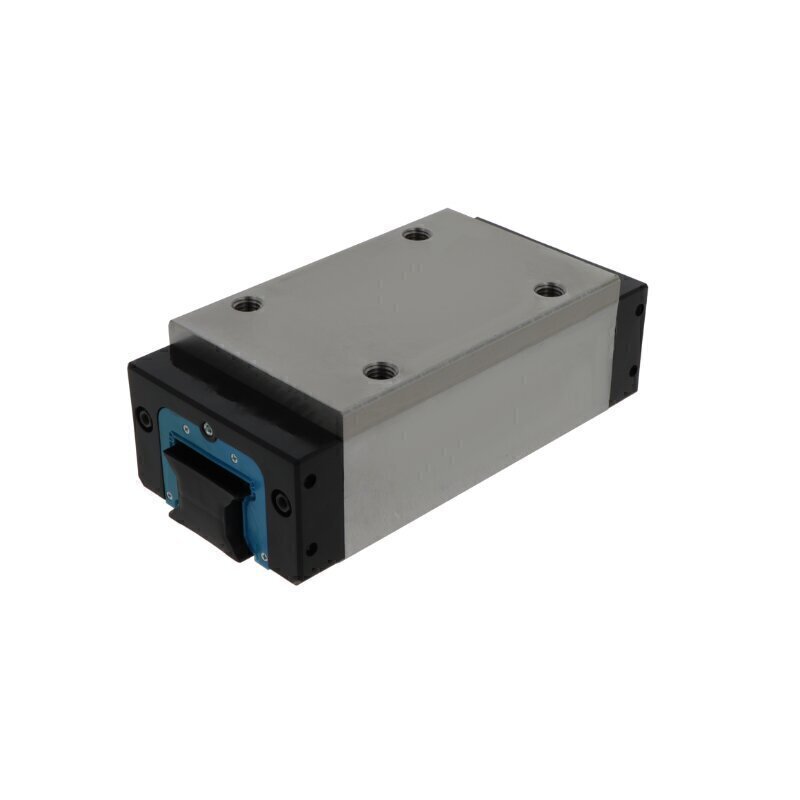

R162471422 KWD-030-SLH-C1-N-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Plastic Hostaform Gears
Rotex Spider Inserts
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
30 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
High, narrow, short type
Reference
R162471422KWD030SLHC1N1
Additional Reference:
10147380
Quick Order Code
BB-523926
Product Description
R162471422 KWD-030-SLH-C1-N-1 (CS) Bosch Rexroth Carriage
This robust block carriage from Bosch Rexroth is engineered for industrial linear motion applications demanding durability and reliable performance. The KWD-030-SLH-C1-N-1 combines the 30 series' substantial load capacity with a compact high, narrow, short design, making it ideal for heavy-duty automation systems, machinery assemblies, and industrial equipment requiring smooth, consistent linear guidance in space-constrained environments.
Key Specifications:
- Series: 30 series - designed for moderate to heavy load applications
- Design Type: Block carriage with high, narrow, and short configuration
- Rolling Elements: Double row ball bearings for smooth, consistent motion and load distribution
- Tolerance Class: Normal Class - suitable for standard industrial applications
- Preload: Light preload for optimal performance and smooth operation
- Material: Carbon steel construction for strength and durability
- Sealing: End seals to protect against contamination and extend service life
- Ball Chain: With ball chain for guided carriage movement and alignment
- Operating Temperature Range: -10 to +100°C for versatile environmental applications
- Maintenance: Can be relubricated via lubrication nipple for extended service life and easy maintenance
Ideal Applications:
This carriage is well-suited for manufacturing equipment, heavy-duty assembly machinery, industrial production lines, and automated systems where load capacity, durability, and reliable linear motion are essential requirements.
