Quick Code: BB-523221
R162319420 KWD-015-SLS-C0-N-1 (CS) Bosch Rexroth Carriage
Also Try
Hiwin Carriages
THK Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
SPA Belts (12.7mm x 10mm)
AT10 Timing Belts (10mm Pitch)
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Without preload
Seal
End Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Small and long design
Reference
R162319420KWD015SLSC0N1
Additional Reference:
10144625
Quick Order Code
BB-523221
Product Description

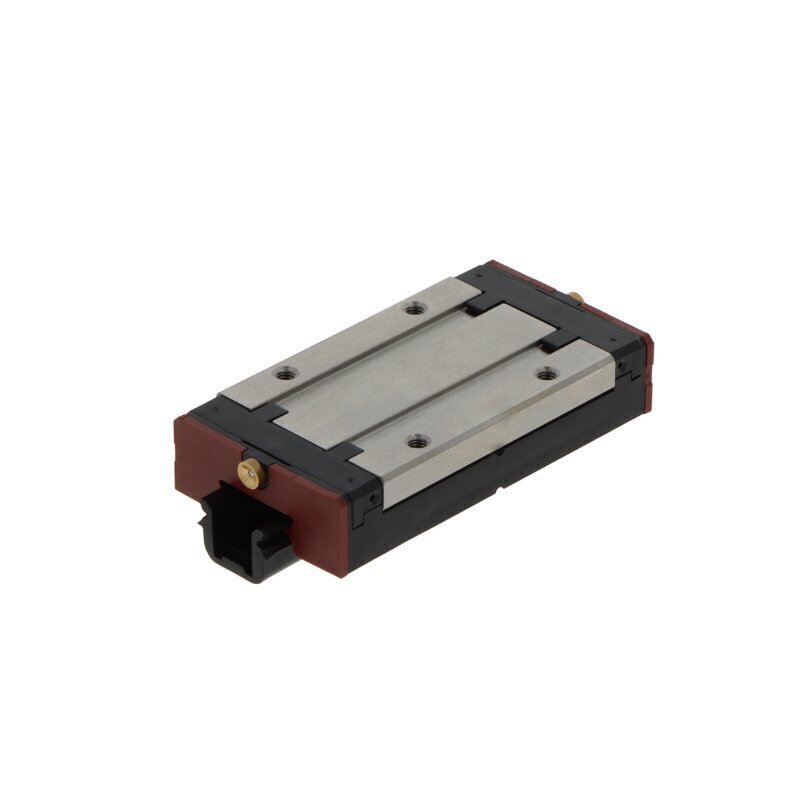

R162319420 KWD-015-SLS-C0-N-1 (CS) Bosch Rexroth Carriage
This compact Bosch Rexroth block carriage is engineered for linear motion applications requiring reliable performance in space-constrained environments. Part of the lightweight 15 series range, this carriage delivers dependable accuracy and smooth operation across a wide range of industrial applications.
Key Features:
- Design: Block carriage configuration for versatile mounting and installation flexibility
- Series: 15 series – compact and lightweight design for restricted space applications
- Rolling Elements: Double-row ball bearing arrangement for balanced load distribution and smooth linear motion
- Preload: Without preload for economical operation and reduced friction
- Tolerance Class: Normal Class for standard dimensional accuracy requirements
- Material: Carbon steel construction for strength, durability, and reliable performance
- Sealing: End seals to protect against dust and contamination, extending operational life
- Version: Small and long design for optimal fit in compact and extended linear motion systems
- Operating Temperature: -10 to +100°C for stable performance across diverse environmental conditions
- Maintenance: Relubrication capability via integrated lubrication nipple for convenient servicing and extended service intervals
- Ball Chain: Without ball chain
Ideal Applications:
- Compact automation and conveyor systems
- Light to medium-duty industrial machinery
- General-purpose positioning and material handling equipment
- Space-limited linear motion requirements
- Cost-effective linear drive systems requiring standard accuracy
This carriage is part of our extensive range of over 290 precision-engineered Bosch Rexroth linear carriages, providing an economical solution for your linear motion requirements.
