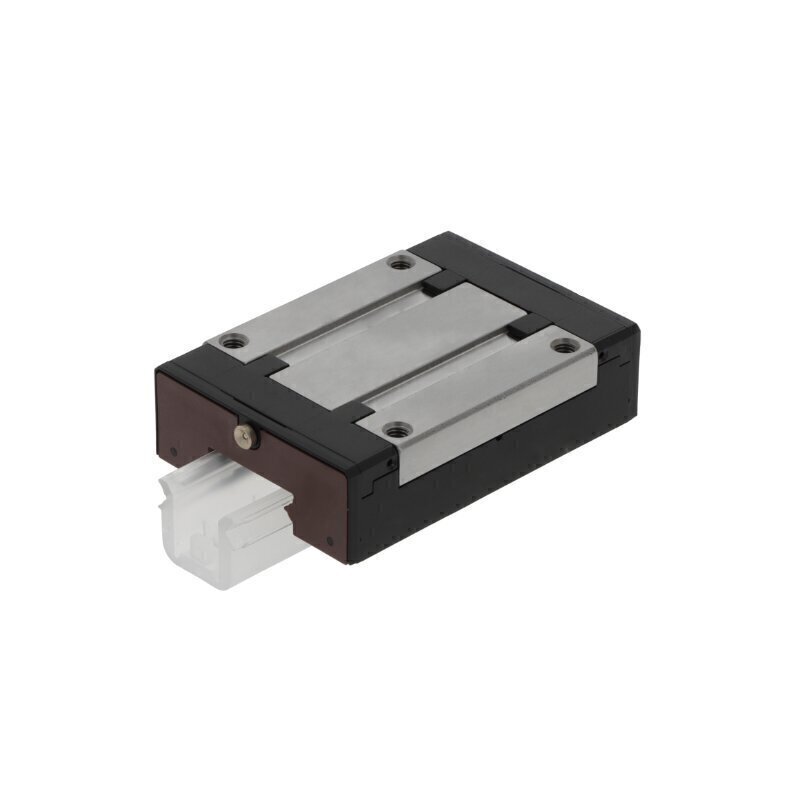

R162289422 KWD-020-SNS-C0-N-1 (CS) Bosch Rexroth Carriage
The R162289422 KWD-020-SNS-C0-N-1 (CS) Bosch Rexroth Carriage is a compact block carriage engineered for reliable linear motion in space-constrained applications. This versatile carriage combines practical functionality with efficient performance, making it an excellent choice for standard industrial automation, machinery, and precision positioning systems where compact design is essential.
Key Features:
- Series: 20 series - compact capacity for space-limited applications
- Design: Block carriage with small design configuration for optimal space efficiency and integration into confined areas
- Rolling Elements: Double row ball bearing arrangement for consistent load distribution and smooth, reliable operation
- Tolerance Class: Normal Class - suitable for standard industrial precision requirements
- Preload: Without preload configuration for reduced friction and ease of operation
- Material: Carbon steel construction for durability and cost-effectiveness
- Sealing: End seals for reliable protection against dust and contaminants
- Ball Chain: With ball chain for enhanced guidance and stability during linear motion
- Temperature Range: -10 to +100°C operational capability for diverse environmental conditions
- Lubrication: Relubrication capability via lubrication nipple for extended service life and simplified maintenance
Typical Applications:
This carriage is well-suited for compact automation equipment, standard machinery in confined spaces, precision assembly systems, electronic packaging equipment, material handling applications with space constraints, and other linear motion systems where reliable performance and compact form factor are key priorities. The small design profile makes it ideal for applications that demand effective linear guidance without sacrificing valuable workspace or equipment footprint.
