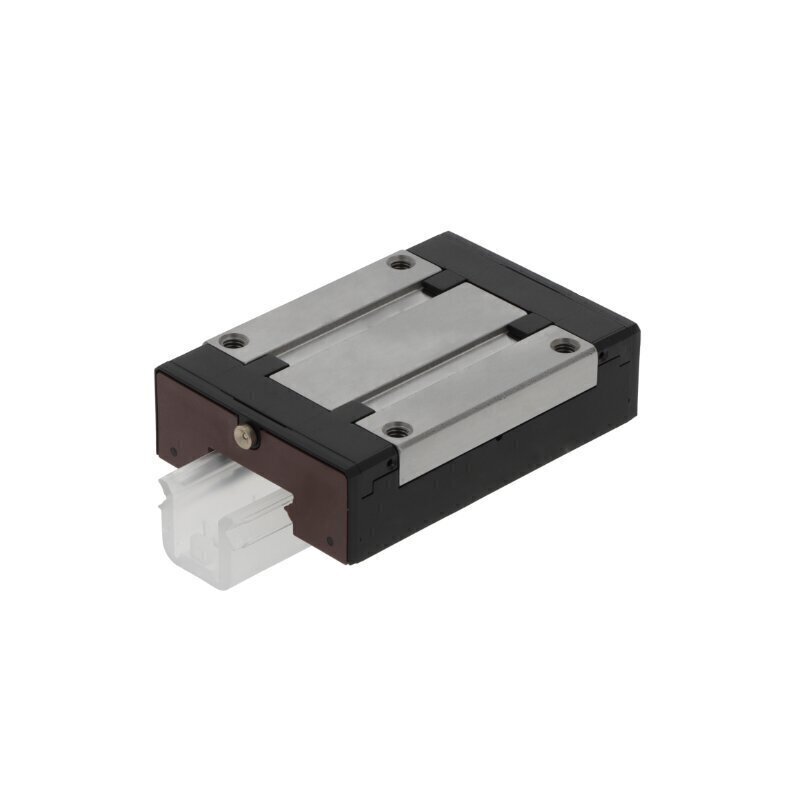

R162229320 KWD-025-SNS-C0-H-1 (CS) Bosch Rexroth Carriage
The R162229320 KWD-025-SNS-C0-H-1 (CS) Bosch Rexroth Carriage is a precision-engineered linear carriage designed for demanding motion control applications requiring high accuracy and reliable performance. This compact carriage delivers exceptional positioning precision in industrial environments where space efficiency and smooth linear motion are essential.
Key Specifications:
- Series: 25 series
- Design: Block carriage configuration
- Rolling Elements: Double row ball bearings for smooth, precise linear motion
- Preload: Without preload for minimal friction and smooth operation
- Material: Carbon steel for durability and strength
- Tolerance Class: H (High-Precision Class) for superior accuracy and repeatable positioning
- Sealing: End seals to protect against contamination and extend service life
- Operating Temperature: -10 to +100°C for versatile environmental applications
- Lubrication: Relubrication capability via integrated lubrication nipple for extended maintenance intervals and consistent performance
- Ball Chain: Without ball chain configuration
- Version: Small design for space-constrained applications
Applications:
This carriage is ideal for industrial automation, precision manufacturing equipment, machine tools, CNC systems, and compact linear motion applications requiring reliable performance with high positional accuracy. The small design version allows for flexible mounting in space-limited installations, while the double row ball bearing configuration with high-precision tolerance ensures smooth operation and excellent repeatability. The without preload specification makes this carriage particularly suitable for applications where minimal resistance and energy efficiency are priorities, while still maintaining the precision and reliability demanded in industrial motion control systems.
Reference: R162229320KWD025SNSC0H1 | Brand: Bosch Rexroth
