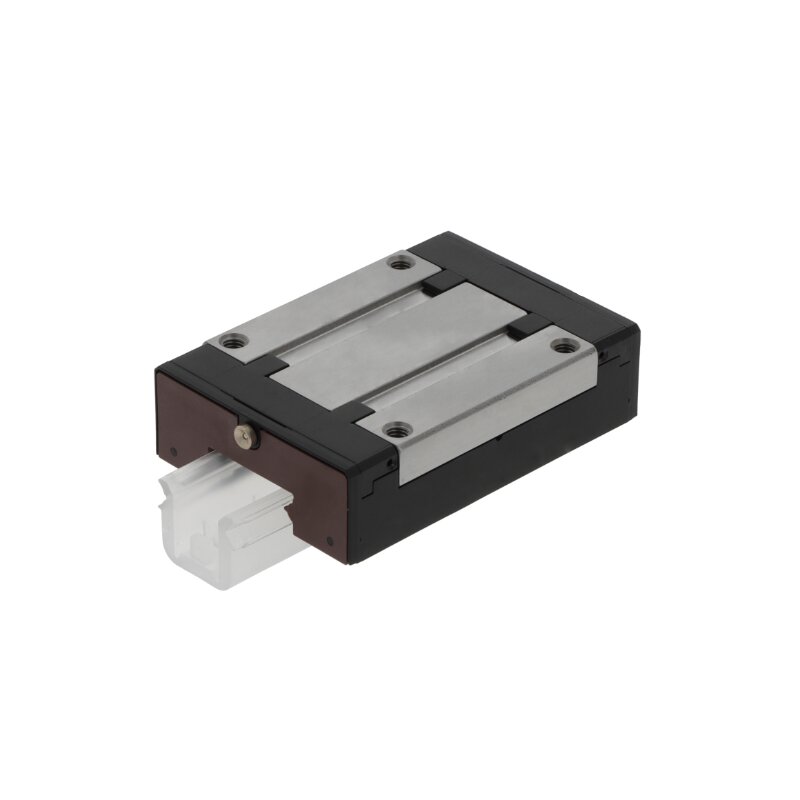

R162222222 KWD-025-SNS-C2-P-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Medium preload
Seal
End Seals
Series
25 series
Temperature range
-10 to +100 °C
Tolerance class
P (Precision Class)
Type of rolling elements
Balls
Version
Small design
Reference
R162222222KWD025SNSC2P1
Additional Reference:
10147625
Quick Order Code
BB-523983
Product Description
The R162222222 KWD-025-SNS-C2-P-1 (CS) Bosch Rexroth Carriage is a precision-engineered linear carriage designed for demanding motion control applications. This compact 25 series block carriage delivers reliable performance with ball chain guidance and exceptional accuracy for systems requiring smooth, controlled linear movement.
Key Specifications:
- Series: 25 series
- Design: Block carriage with small design configuration
- Rolling Elements: Double row ball bearings for smooth, consistent motion
- Preload: Medium preload for optimal load distribution and reduced play
- Tolerance Class: P (Precision Class) for accurate positioning
- Ball Chain: Equipped with ball chain for enhanced guidance
Material & Durability:
- Material: Carbon steel construction for robust performance
- Sealing: End seals protect against contamination
- Operating Temperature Range: -10 to +100°C
- Lubrication: Relubrication capable via lubrication nipple for extended service life
Ideal Applications:
This carriage is well-suited for:
- Industrial automation and machinery requiring precision linear motion
- Compact systems where space constraints demand smaller carriage designs
- Applications requiring medium load capacity with high accuracy
- Systems operating in temperature-controlled environments
- Equipment needing reliable, maintainable linear guidance solutions
As a Bosch Rexroth product, this carriage meets the highest engineering standards and integrates seamlessly into modern linear motion systems.
