R162222220 KWD-025-SNS-C2-P-1 (CS) Bosch Rexroth Carriage
Also Try
Hiwin Carriages
THK Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Angular Contact Bearings
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Medium preload
Seal
End Seals
Series
25 series
Temperature range
-10 to +100 °C
Tolerance class
P (Precision Class)
Type of rolling elements
Balls
Version
Small design
Reference
R162222220KWD025SNSC2P1
Additional Reference:
10147277
Quick Order Code
BB-523915
Product Description

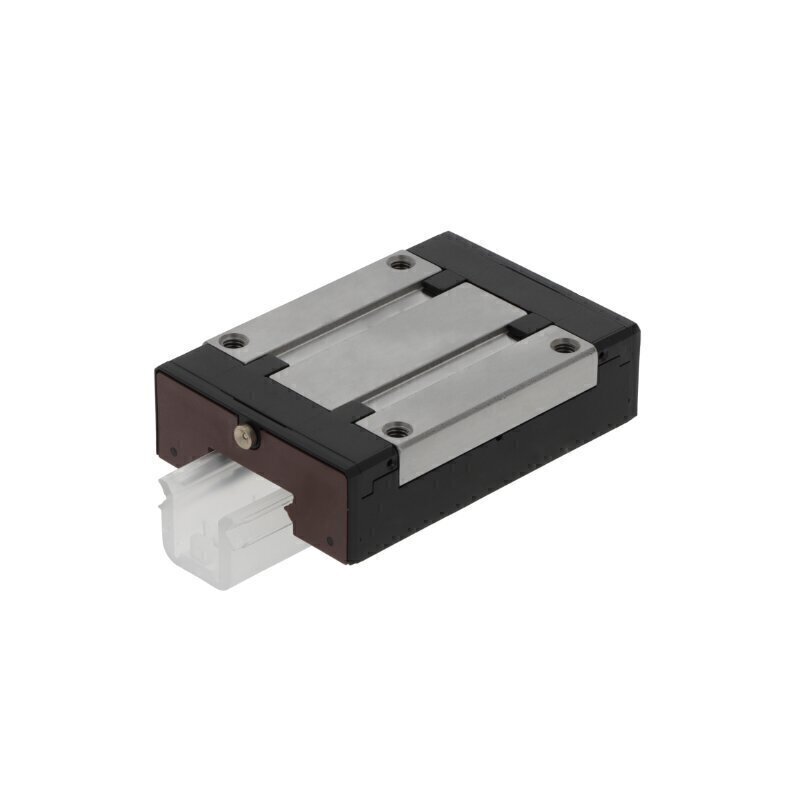

R162222220 KWD-025-SNS-C2-P-1 (CS) Bosch Rexroth Carriage
This precision linear carriage from Bosch Rexroth is engineered for demanding applications requiring enhanced accuracy and reliability. Part of the 25 series range, this small-design block carriage combines precision engineering with practical maintenance capabilities, making it ideal for industrial automation systems that demand consistent performance.
Key Features:
- Brand: Bosch Rexroth – trusted leader in linear motion technology
- Series: 25 series – proven design for medium to high-performance applications
- Design Type: Block carriage with small profile – compact geometry ideal for space-constrained installations
- Rolling Elements: Double-row ball bearings – delivering smooth, consistent linear motion with superior load distribution
- Preload: Medium preload – optimized for balanced performance between load capacity and smooth operation
- Tolerance Class: P (Precision Class) – enhanced accuracy for applications demanding tighter tolerances
- Material Composition: Carbon steel construction – ensures durability and reliable long-term performance
- Sealing: End seals on both sides – provides effective protection against contaminants and extends service life
- Lubrication: Relubrication capability via lubrication nipple – facilitates convenient maintenance and extended service intervals
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C – suitable for diverse industrial environments
Ideal Applications:
This carriage is well-suited for:
- Precision automated assembly and production machinery
- Industrial positioning systems requiring enhanced accuracy
- High-precision material handling and conveyor systems
- Manufacturing equipment demanding reliable linear motion with tight tolerances
- Packaging and labeling systems requiring precision and repeatability
- Automation equipment where compact installation space is critical
Reference Number: R162222220KWD025SNSC2P1
As part of the extensive Bosch Rexroth carriage portfolio, this model combines precision engineering with practical maintenance advantages, making it an excellent choice for linear motion systems demanding both accuracy and ease of operation.
