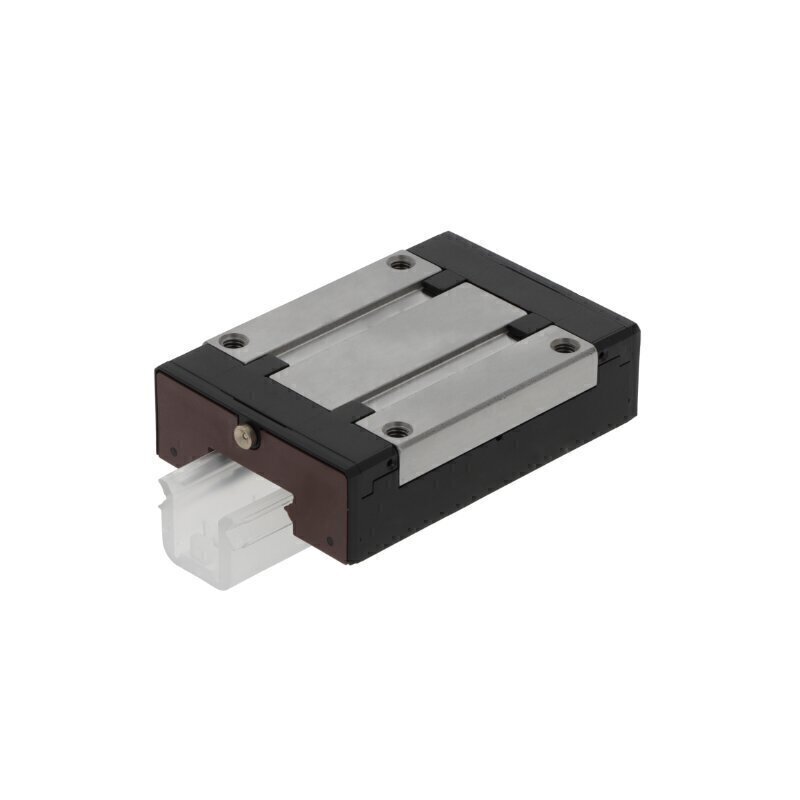

R162221220 KWD-025-SNS-C1-P-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
25 series
Temperature range
-10 to +100 °C
Tolerance class
P (Precision Class)
Type of rolling elements
Balls
Version
Small design
Reference
R162221220KWD025SNSC1P1
Additional Reference:
10145023
Quick Order Code
BB-523341
Product Description
The R162221220 KWD-025-SNS-C1-P-1 (CS) Bosch Rexroth Carriage is a precision-engineered linear carriage designed for demanding motion control applications requiring high accuracy and reliable performance. This block carriage combines precision-class tolerances with robust carbon steel construction, making it an excellent choice for applications demanding superior accuracy without excessive rigidity.
Key Specifications:
- Series: 25 series – delivering balanced load capacity for medium-duty applications
- Design: Block carriage configuration for versatile mounting options and robust support
- Tolerance Class: P (Precision Class) – ensures high accuracy for precision-critical applications
- Rolling Elements: Double row ball bearings for smooth, consistent linear motion
- Preload: Light preload for optimal balance between rigidity and smooth operation
- Material: Carbon steel construction providing excellent strength, durability, and reliability
Design & Features:
- Version: Small design configuration – compact profile ideal for space-constrained installations
- Sealing: End seals protect against contamination while maintaining smooth operation
- Ball Chain: Without ball chain for simplified installation and maintenance
- Lubrication: Relubrication capability via lubrication nipple extends service life and ensures consistent performance over extended operating periods
- Operating Temperature: -10 to +100°C – suitable for diverse industrial environments
Applications:
Ideal for:
- Industrial automation and machinery
- Machine tools and precision equipment
- Packaging and material handling systems
- Medical device assembly and positioning
- General-purpose linear motion control systems where precision and compact design are essential
- Applications requiring moderate load capacity with high positional accuracy
Brand: Bosch Rexroth | Reference: R162221220KWD025SNSC1P1
