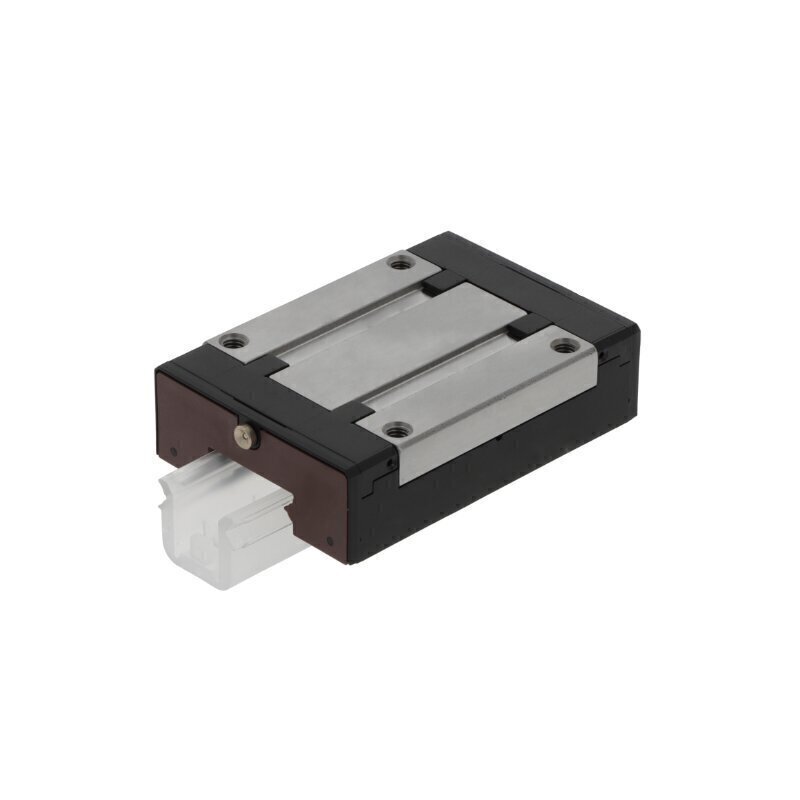

R162219320 KWD-015-SNS-C0-H-1 (CS) Bosch Rexroth Carriage
The R162219320 KWD-015-SNS-C0-H-1 (CS) Bosch Rexroth Carriage is a compact linear carriage engineered for precision applications requiring high accuracy in a space-constrained environment. This block carriage combines advanced ball rolling technology with high-precision-class performance, making it ideal for industrial systems demanding reliable motion control with excellent repeatability.
Key Specifications:
- Series: 15 series - compact design for lightweight to medium-load applications
- Design Type: Block carriage configuration for space-efficient integration
- Rolling Elements: Precision balls in double-row arrangement for smooth, accurate linear motion
- Tolerance Class: H (High-Precision Class) for exceptional accuracy and repeatable positioning
- Design Version: Small design for compact mounting and minimal footprint
- Preload: Without preload for standard applications with lower radial load requirements
- Material: Carbon steel construction for durability and reliable performance
Features & Benefits:
- Double-Row Ball Configuration: Provides smooth linear motion with high precision, ideal for applications requiring tight tolerances and accurate positioning
- Compact Small Design: Optimized for space-constrained environments while maintaining excellent precision performance
- End Seals: Protective sealing system to minimize contamination and ensure reliable operation in various industrial environments
- Relubrication Capability: Equipped with lubrication nipple for convenient maintenance and extended operational life
- Operating Temperature Range: -10 to +100°C for versatile environmental applications
- No Ball Chain: Streamlined configuration for simplified design integration
Ideal Applications:
This carriage is particularly well-suited for precision automation equipment, compact CNC machinery, measurement systems, medical devices, and applications where space is limited but high-precision accuracy is essential. Its high-precision-class performance and compact design make it excellent for systems requiring reliable, repeatable motion in demanding industrial and laboratory environments.
Brand: Bosch Rexroth | Reference: R162219320KWD015SNSC0H1
