Quick Code: BB-519454
R162211322 KWD-015-SNS-C1-H-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
H (High-Precision Class)
Type of rolling elements
Balls
Version
Small design
Reference
R162211322KWD015SNSC1H1
Additional Reference:
10133505
Quick Order Code
BB-519454
Product Description

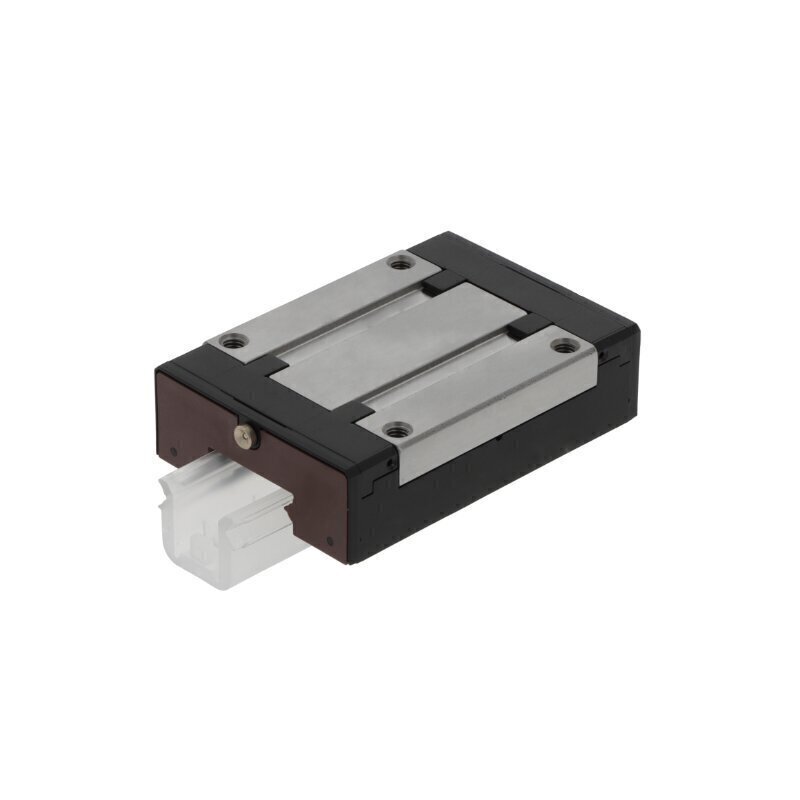

R162211322 KWD-015-SNS-C1-H-1 (CS) Bosch Rexroth Carriage
This precision-engineered Bosch Rexroth linear carriage is designed for compact applications requiring high accuracy and reliable performance in linear motion systems. The 15 series block carriage combines precision engineering with practical durability, making it ideal for space-constrained industrial automation, machine tools, and precision positioning applications where high-precision tolerances are essential.
Key Specifications:
- Series: 15 series (compact design)
- Design: Block carriage with small design version for space-efficient installations
- Tolerance Class: H (High-Precision) suitable for applications requiring tight accuracy tolerances
- Rolling Elements: Double row ball bearings for smooth, precise linear motion
- Preload: Light preload for optimal balance between rigidity and smooth operation
- Material: Carbon Steel for robust strength and durability
- Sealing: End seals to protect against contamination and extend service life
- Lubrication: Relubrication capability via lubrication nipple for extended maintenance intervals
- Operating Temperature: -10 to +100°C
- Ball Chain: With ball chain for guided motion support
Ideal Applications:
- Compact CNC machining centers and precision machine tools
- High-precision assembly and positioning equipment
- Space-constrained industrial automation systems
- Semiconductor and electronics manufacturing equipment
- Precision measurement and inspection systems
- Compact linear motion stages with guided motion requirements
This carriage delivers the precision and reliability you expect from Bosch Rexroth, with the maintainability features and compact design needed for long-term operational excellence in demanding applications.
