Quick Code: BB-522889
R162171420 KWD-030-SNH-C1-N-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
30 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
High and slimline design
Reference
R162171420KWD030SNHC1N1
Additional Reference:
10143413
Quick Order Code
BB-522889
Product Description

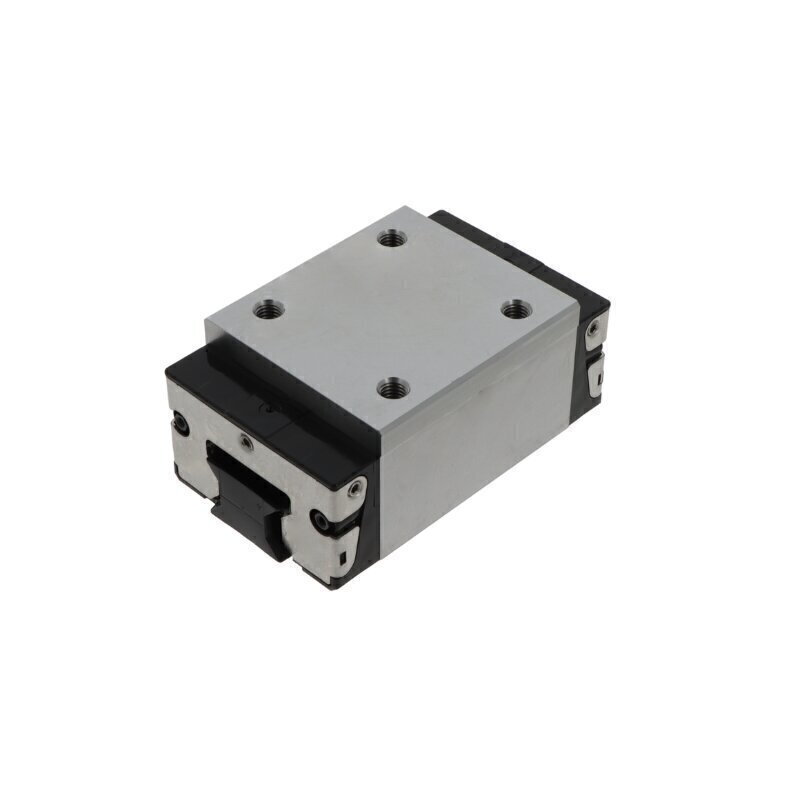

R162171420 KWD-030-SNH-C1-N-1 (CS) Bosch Rexroth Carriage
This precision-engineered block carriage from Bosch Rexroth combines compact dimensions with robust performance, making it an excellent choice for industrial applications requiring reliable linear motion in space-constrained environments. The KWD-030-SNH-C1-N-1 model features a specialized high and slimline design configuration, delivering versatility without compromising on load capacity or durability.
Key Specifications:
- Series: 30 series (mid-range load capacity)
- Design: Block carriage with high and slimline design configuration
- Rolling Elements: Ball bearings in double row arrangement
- Preload: Light preload for enhanced precision and reduced play
- Tolerance Class: Normal Class
- Material: Carbon Steel with corrosion protection
- Operating Temperature Range: -10 to +100°C
- Seal Type: End seals for effective dust and contamination protection
- Lubrication: Can be relubricated via lubrication nipple for extended service life
- Ball Chain: Without ball chain
Applications:
This carriage is well-suited for:
- Industrial automation equipment with space limitations
- Assembly and handling systems requiring compact design
- Manufacturing machinery requiring moderate to medium load handling
- Precision motion control systems in production environments
- Equipment operating in standard to moderately demanding industrial conditions
- Systems requiring lightweight, space-efficient linear guidance solutions
Reference: R162171420KWD030SNHC1N1
