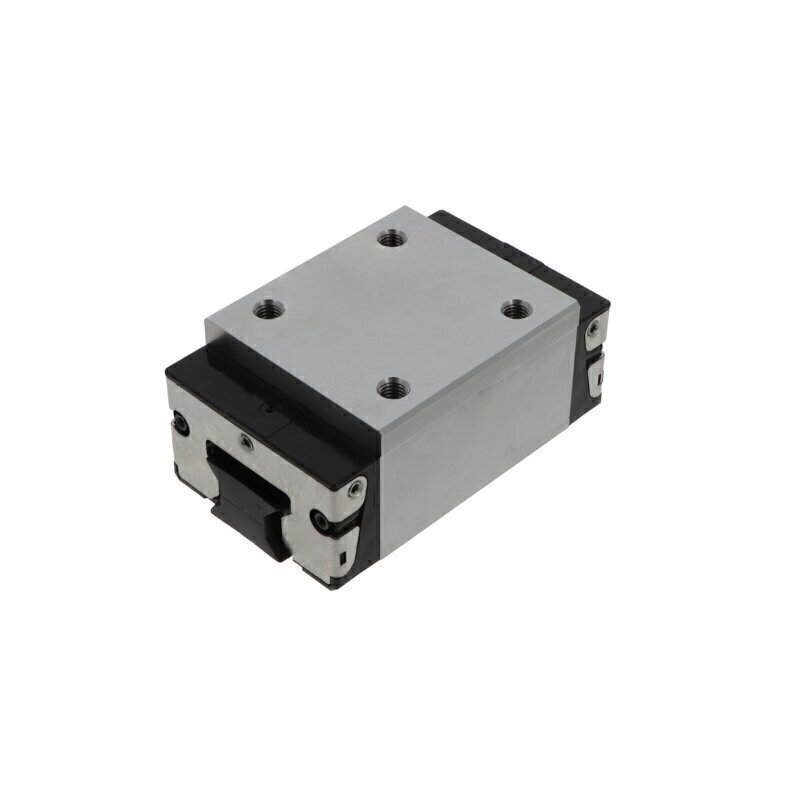

R162111422 KWD-015-SNH-C1-N-1 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
High and slimline design
Reference
R162111422KWD015SNHC1N1
Additional Reference:
10134934
Quick Order Code
BB-519848
Product Description
The R162111422 KWD-015-SNH-C1-N-1 (CS) Bosch Rexroth Carriage is a compact, precision-engineered linear carriage designed for space-constrained motion control applications requiring reliable performance and smooth operation.
Key Specifications:
- Series: 15 series - ultra-compact design ideal for confined spaces
- Design Type: Block carriage configuration
- Rolling Elements: Ball bearings in double row arrangement
- Tolerance Class: Normal Class for standard accuracy applications
- Preload: Light preload for smooth, responsive motion
- Material: Carbon steel construction for durability and strength
- Ball Chain: Integrated ball chain for guided linear motion
Features & Benefits:
- High and Slimline Design: Compact profile maximizes available space while maintaining structural integrity and load capacity
- End Seals: Protective sealing system to minimize contamination and extend service life
- Relubrication Capability: Equipped with lubrication nipple for convenient maintenance and extended operational life
- Operating Temperature Range: -10 to +100°C for versatile environmental applications
Ideal Applications:
This carriage is well-suited for compact linear motion systems in industrial automation, laboratory equipment, medical devices, and machinery where space is limited but reliable positioning and smooth operation are essential. The integrated ball chain ensures guided, controlled motion in confined installation areas.
