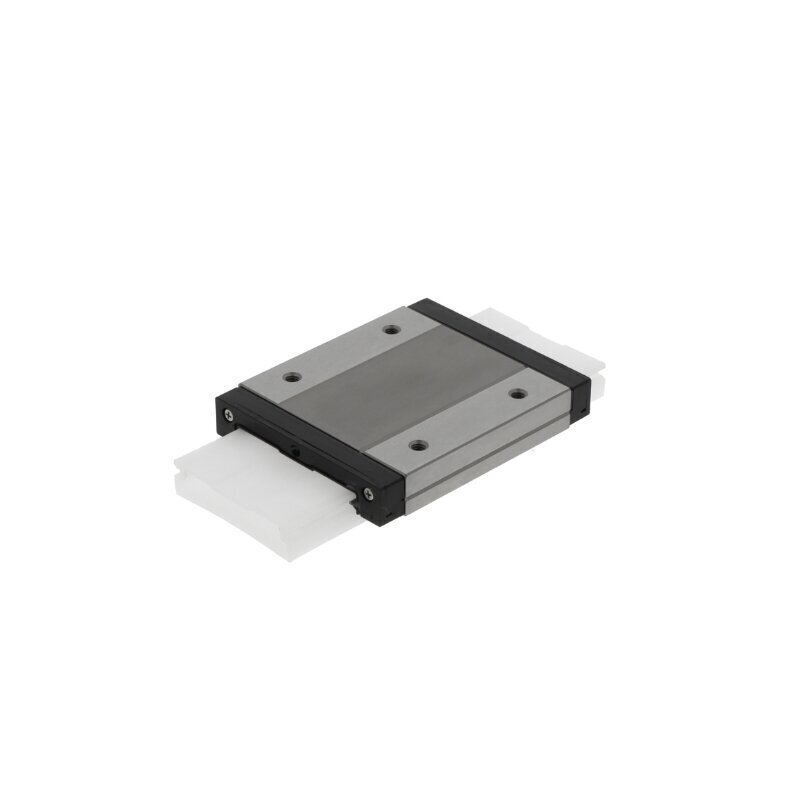

R044181301 MWA-009-BLS-C1-H-3 (NRII) Bosch Rexroth Carriage
R044181301 MWA-009-BLS-C1-H-3 (NRII) Bosch Rexroth Carriage
A high-precision linear carriage from Bosch Rexroth's versatile 9 series, engineered for applications demanding excellent accuracy with extended travel capabilities. This wide and long block carriage design combines compact efficiency with high-precision performance, featuring corrosion-resistant steel construction with integrated plastic components. The MWA-009-BLS-C1-H-3 is an ideal solution for industrial systems requiring reliable linear motion in space-constrained yet extended-range applications.
Key Specifications:
- Design Type: Block carriage with wide and long configuration
- Series: 9 series
- Rolling Elements: Ball bearings in double row configuration
- Preload: Light preload for smooth operation with minimal play
- Material: Steel with anti-corrosion protection and plastic components
- Tolerance Class: H (High-Precision Class) for enhanced accuracy and repeatability
- Sealing: End seals for effective contamination protection
- Lubrication: Relubrication capability via integrated lubrication nipple for extended service life and reduced maintenance downtime
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C
Applications:
This carriage is well-suited for precision automation equipment, machine tools, assembly systems, material handling systems, and industrial machinery where high-precision linear motion across extended travel distances is essential. The wide and long design configuration is particularly advantageous for applications requiring both compact profile and extended stroke length. The corrosion-resistant material composition makes it ideal for demanding industrial environments where durability and reliability are critical. Perfect for positioning systems and manufacturing equipment where high-precision accuracy combined with extended operational range is required.
Maintenance Advantage:
The relubrication capability through the dedicated lubrication nipple ensures extended service life and simplified maintenance, allowing for easy upkeep and optimal performance throughout the product lifecycle with minimal operational downtime.
