Bearings Linear Bearings & Shaft Ball Bushings Bosch Rexroth Ball Bushing
Quick Code: BB-170939

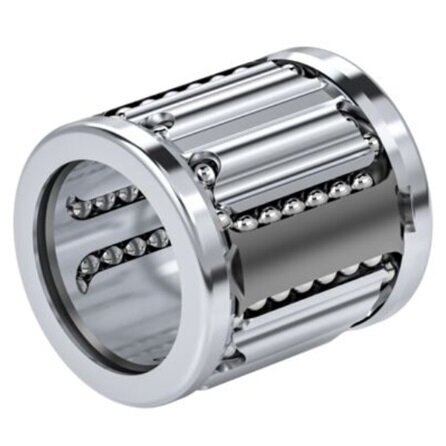

CLEARANCE R065822040 Bosch Rexroth Compact Linear Ball Bearing (2 AVAILABLE)

Also Try

LBBR Ball Bushings

LMK Flanged Ball Bushing

Buy Now

Qty:

Product Specification

Brand

Bosch Rexroth

Inside Dia

20mm

Outside Dia

28mm

Seal

2 integrated wiper seals

Width

30mm

Quick Order Code

BB-170939

Product Description

Compact LB, 20, with two seals, not lubricated
Compact linear bushing
Shaft diameter d = 20
With two seals
Radial clearance: Standard
Version: Standard
Not lubricated
Low-cost linear bushing for general requirements
Small outer dimensions and highly compact construction
High dynamic load rating and long service life due to hardened segmental load-bearing plates with ball conformity in the running track
High travel speed (5 m/s)
Integrated wiper seals, external seals or no wiper seals
Normal radial clearance
Not greased
Simple mounting: Just press on � no additional retention needed
Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life
Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.
Integrated metal retainer about 0.1 mm larger than outer diameter (shaft diameters 12 to 50) for secure fit in housing bore
