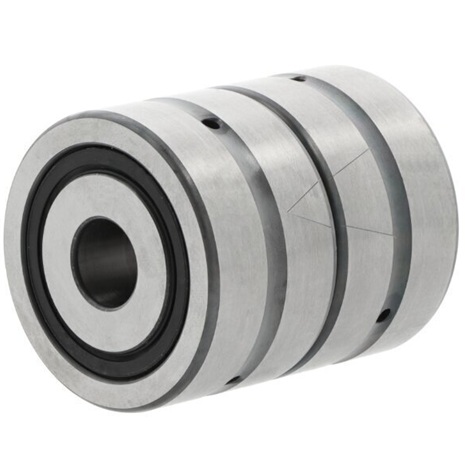

ZKLN5090-2RS-2AP-XL INA Axial Angular Contact Bearing 50mm x 90mm x 68mm
The ZKLN5090-2RS-2AP-XL INA Axial Angular Contact Bearing is a precision bearing engineered for demanding industrial applications requiring superior performance, accuracy, and reliability.
Design & Capabilities
These bearings are specifically designed for highly dynamic operating conditions in screw drives and similar applications that demand:
- High accuracy and precision
- Exceptional load carrying capacity
- High rigidity and minimal deflection
- Low friction operation
- Maintenance-free or low-maintenance performance
Performance Features
The 60 degree contact angle enables these bearings to support both substantial radial forces and high axial forces simultaneously, making them ideal for complex loading scenarios. As a matched pair configuration, this bearing delivers enhanced performance and reliability for demanding applications. The ZKLN bearing series is mounted in a housing bore with the bearing outer ring axially located by a cover, ensuring secure and stable installation.
Key Specifications
- Bore Diameter: 50mm
- Outer Diameter: 90mm
- Width: 68mm
- Brand: INA
- Double direction capability for bidirectional load support
- Matched pair design for optimized performance
- Lip seals on both sides (2RS) for enhanced protection and low-maintenance operation
- XL designation indicating extended size range
Applications
This bearing is well-suited for precision machinery, screw drives, spindle assemblies, and other high-performance industrial equipment where reliability, accuracy, and maintenance-free operation are critical requirements.
