Bearings
Angular Contact Bearings
Axial Angular Contact Bearings
Quick Code: BB-137544

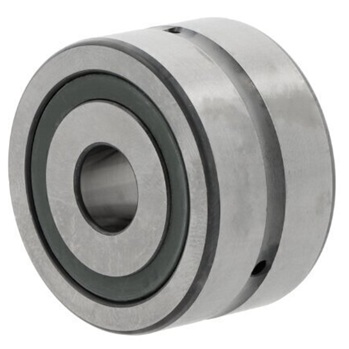

ZKLN4075-2Z-XL INA Axial Angular Contact Bearing 40mm x 75mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
40mm
Outside Dia
75mm
Sealing Type
Shielded
Width
34mm
Reference
ZKLN4075-2Z
Quick Order Code
BB-137544
Product Description
The ZKLN4075-2Z-XL is a premium INA axial angular contact bearing engineered for demanding industrial applications. Measuring 40mm x 75mm x 34mm, this bearing combines precision engineering with robust performance characteristics ideal for high-precision machinery.
Design & Performance:
- Designed for highly dynamic operating conditions in screw drives requiring high accuracy, high load carrying capacity, high rigidity, and low friction
- Supports both radial forces and high axial forces with a 60 degree contact angle
- Maintenance-free or low-maintenance operation
- Double direction capability for versatile load distribution
Construction & Features:
- Shielded design with gap seals on both sides for optimal protection
- ZKLN bearing range design mounted in a housing bore with the outer ring axially located by a cover
- Compact design envelope optimized for space-constrained applications
Applications:
Ideal for precision industrial equipment, machine tool spindles, screw drive systems, and other high-performance applications where reliability, accuracy, and efficient load handling are critical requirements.
Specifications:
- Brand: INA
- Bore Diameter: 40mm
- Outer Diameter: 75mm
- Width: 34mm
- Sealing Type: Shielded with gap seals
