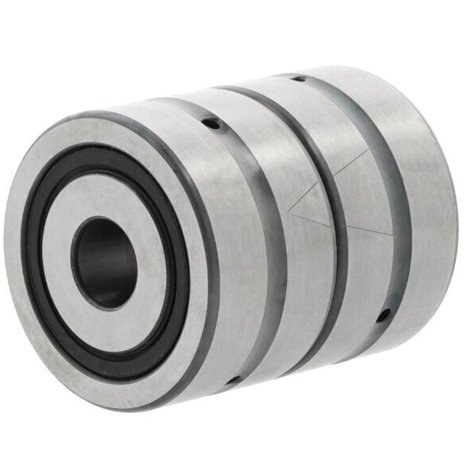

ZKLN4075-2RS-2AP-XL INA Axial Angular Contact Bearing 40mm x 75mm x 68mm
ZKLN4075-2RS-2AP-XL INA Axial Angular Contact Bearing
These precision bearings are engineered for highly dynamic operating conditions in screw drives and similar demanding applications that require exceptional accuracy, high load carrying capacity, superior rigidity, low friction, and maintenance-free or low-maintenance performance.
The bearings excel at supporting both radial forces and high axial forces simultaneously, thanks to their 60 degree contact angle design. This makes them ideal for mechanical systems where multi-directional force management is critical, including ball screw assemblies, precision machinery, and industrial automation equipment.
Distinctive Design Features:
- Double direction capability for versatile mounting configurations
- Matched pair design for optimal load distribution and performance
- Lip seals on both sides for superior protection against contaminants and maintaining lubrication
- Housing-mounted design with outer ring axially located by cover for secure installation
- Robust 68mm width provides exceptional load-carrying capacity and rigidity
Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 75mm
- Width: 68mm
- Sealing Type: Sealed with Lip Seals
- Manufacturer: INA
- Configuration: Matched Pair
The ZKLN4075-2RS-2AP-XL is particularly well-suited for heavy-duty applications where consistent performance under sustained radial and axial loading is essential. Its matched pair configuration and comprehensive sealing system make it an excellent choice for precision positioning systems and high-performance industrial drive mechanisms.
