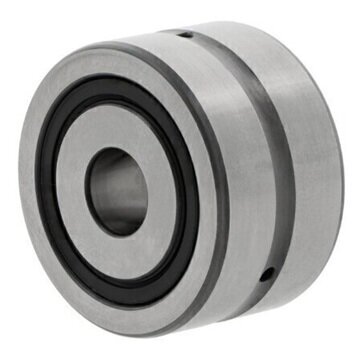

ZKLN3572-2RS-XL INA Axial Angular Contact Bearing 35mm x 72mm x 34mm
ZKLN3572-2RS-XL INA Axial Angular Contact Bearing
This premium axial angular contact bearing is engineered for demanding applications requiring exceptional precision, load capacity, rigidity and low-friction performance. The ZKLN3572-2RS-XL is particularly well-suited for highly dynamic operating conditions found in screw drives and similar precision machinery.
Key Performance Features:
- 60 degree contact angle design supports both radial and high axial forces simultaneously
- Double-direction capability for bi-directional load support
- High accuracy and rigidity for precision applications
- Low-friction operation for efficient power transmission
- Maintenance-free or low-maintenance operation
Specifications:
- Bore Diameter: 35mm
- Outer Diameter: 72mm
- Width: 34mm
- Manufacturer: INA
- Sealing: Sealed with lip seals on both sides (2RS designation)
Design & Installation:
The bearing is designed for mounting in a housing bore, with the outer ring axially located by a cover for secure, stable installation. The dual lip seals on both sides provide protection against contamination and help retain lubricant, extending bearing life and reducing maintenance requirements.
Applications:
Ideal for precision machinery, screw drives, and other dynamic applications where reliable axial and radial load support is critical.
