Quick Code: BB-137543

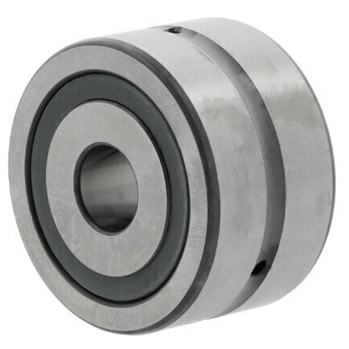

ZKLN3072-2Z-XL INA Axial Angular Contact Bearing 30mm x 72mm x 38mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
30mm
Outside Dia
72mm
Sealing Type
Shielded
Width
38mm
Reference
ZKLN3072-2Z
Quick Order Code
BB-137543
Product Description
ZKLN3072-2Z-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic screw drive applications and other demanding operating conditions requiring exceptional accuracy, load capacity, rigidity, and low friction performance. With its robust 30mm bore and 72mm outer diameter, it delivers reliable support in demanding industrial environments.
Key Features:
- 60 degree contact angle for superior radial and axial load capacity
- Double-direction support capability
- Gap seals on both sides for maintenance-free or low-maintenance operation
- High accuracy and rigidity for precision applications
- Low friction design for efficient operation
- Stepped outer ring design for secure axial location via housing cover
- Housed bearing design with outer ring axially located by cover for direct mounting in housing bores
Design Specifications:
- Bore Diameter: 30mm
- Outer Diameter: 72mm
- Width: 38mm
- Sealing Type: Shielded (Double-sided gap seals)
- Manufacturer: INA
- Housing Mount Design: Yes
Applications:
Ideal for screw drives, precision machinery, and industrial assemblies requiring both radial and axial load support in high-speed, high-accuracy environments. The housed bearing design makes it particularly suitable for applications requiring direct mounting in housing bores with cover-based axial location.
