Quick Code: BB-137542

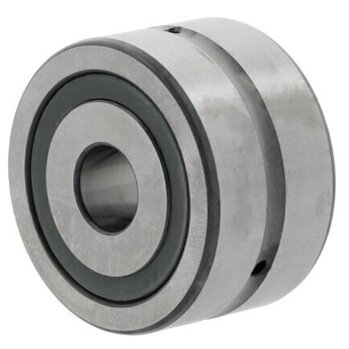

ZKLN3062-2Z-XL INA Axial Angular Contact Bearing 30mm x 62mm x 28mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
30mm
Outside Dia
62mm
Sealing Type
Shielded
Width
28mm
Reference
ZKLN3062-2Z
Quick Order Code
BB-137542
Product Description
The ZKLN3062-2Z-XL INA Axial Angular Contact Bearing is engineered for demanding, highly dynamic applications requiring exceptional precision and reliability. With dimensions of 30mm bore x 62mm outer diameter x 28mm width, this bearing is ideal for screw drive systems and other precision machinery.
Key Characteristics:
- 60 degree contact angle enables support for both radial and high axial forces simultaneously
- High accuracy and load carrying capacity for rigorous operating conditions
- High rigidity and low friction performance
- Maintenance-free or low-maintenance operation
- Double direction capability for bidirectional loading
- Shielded design with gap seals on both sides for enhanced protection
Design & Installation:
The ZKLN bearing range is specifically designed for direct mounting in a housing bore, with the outer ring axially located by a cover. This configuration provides stable, precise mounting for critical applications.
Applications:
Perfect for precision screw drive systems, machine tools, and other high-performance machinery where accuracy, durability, and the ability to handle combined radial and axial loads are essential requirements.
