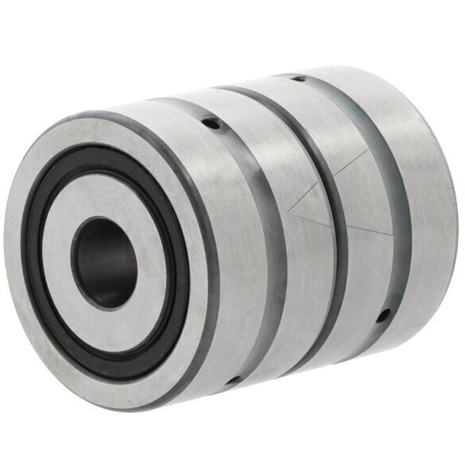

ZKLN3062-2RS-2AP-XL INA Axial Angular Contact Bearing 30mm x 62mm x 56mm
ZKLN3062-2RS-2AP-XL INA Axial Angular Contact Bearing
This premium axial angular contact bearing is engineered for highly dynamic screw drive applications demanding exceptional performance, precision, and reliability. With a 60 degree contact angle, it delivers superior load-carrying capacity for both radial and high axial forces, making it ideal for demanding industrial environments requiring minimal maintenance.
Key Features:
- 30mm bore × 62mm outer diameter × 56mm width
- Double direction design for bidirectional load support
- Matched pair configuration for optimized performance and load distribution
- Sealed design with dual lip seals (2RS) on both sides for maintenance-free operation
- High rigidity and minimal friction for optimal performance
- Extended length (XL) design for enhanced load capacity and stability
Design & Application:
The ZKLN bearing series is specifically designed for screw drive mechanisms and is mounted in a housing bore with the bearing outer ring axially located by a cover. This configuration ensures secure installation and reliable operation in precision-critical applications.
Ideal For:
- High-precision screw drive systems with combined radial and axial loading
- Industrial machinery requiring high accuracy and load capacity
- Applications demanding low maintenance and extended service life
- Systems requiring high rigidity, low friction, and dynamic performance
- Matched pair installations for enhanced stability and performance
Trust INA's engineering excellence for reliable bearing solutions that withstand the most demanding operating conditions.
