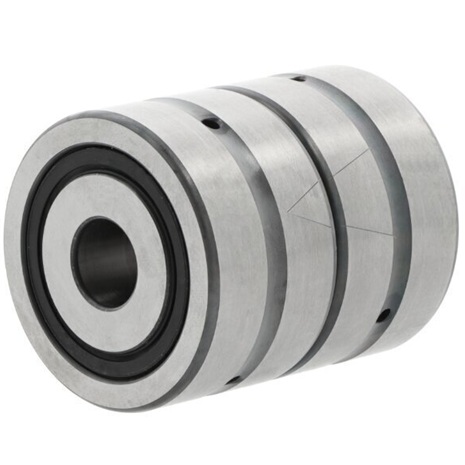

ZKLN2557-2RS-2AP-XL INA Axial Angular Contact Bearing 25mm x 57mm x 56mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
25mm
Outside Dia
57mm
Sealing Type
Sealed
Width
56mm
Reference
ZKLN2557-2RS-2AP
Quick Order Code
BB-137574
Product Description
ZKLN2557-2RS-2AP-XL INA Axial Angular Contact Bearing
This premium axial angular contact bearing from INA is engineered for demanding screw drive applications and other highly dynamic operating conditions. With a 60-degree contact angle, it delivers exceptional performance by supporting both radial and high axial forces simultaneously, making it ideal for applications requiring high accuracy, load capacity, rigidity, and low friction operation.
Key Specifications:
- Bore Diameter: 25mm
- Outer Diameter: 57mm
- Width: 56mm
- Sealing: Double-sided lip seals (2RS) for maintenance-free or low-maintenance operation
- Configuration: Matched pair, double direction design
- Mounting: Housed bearing with outer ring axially located by cover
Design Benefits:
- Handles combined radial and high axial loads efficiently
- Dual-direction capability for versatile mounting configurations
- Sealed design protects against contamination and extends bearing life
- Precision engineering ensures minimal friction and smooth operation
- Pre-matched pair eliminates alignment uncertainty
Ideal Applications:
- Precision screw drive systems
- Machine tool spindles
- Industrial automation equipment
- High-performance mechanical assemblies
Choose the ZKLN2557-2RS-2AP-XL for reliable, precision performance in your most demanding bearing applications.
