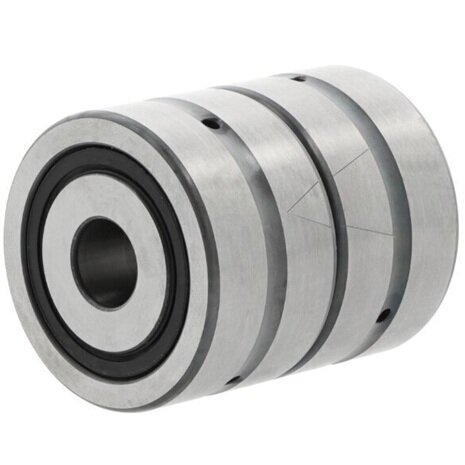

ZKLN2052-2RS-2AP-XL INA Axial Angular Contact Bearing 20mm x 52mm x 56mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
20mm
Outside Dia
52mm
Sealing Type
Sealed
Width
56mm
Reference
ZKLN2052-2RS-2AP
Quick Order Code
BB-137573
Product Description
The ZKLN2052-2RS-2AP-XL INA Axial Angular Contact Bearing is engineered for highly dynamic operating conditions in screw drives and precision applications that demand exceptional accuracy, high load carrying capacity, superior rigidity, and low friction operation. This bearing delivers maintenance-free or low-maintenance performance, making it ideal for demanding industrial environments.
Key Performance Characteristics
- Supports both radial and high axial forces thanks to the 60 degree contact angle design
- High accuracy and precision for critical screw drive applications
- Exceptional load carrying capacity and rigidity
- Low friction operation for improved efficiency
Design & Features
- Double direction capability – handles loads in both directions
- Matched pair configuration – pre-matched components for optimal performance
- Lip seals on both sides – provides sealed protection against contamination for maintenance-free operation
- Housing bore mounting design – outer ring is axially located by a cover for secure installation in housing applications
Specifications
- Inside Diameter: 20mm
- Outside Diameter: 52mm
- Width: 56mm
- Manufacturer: INA
- Sealing Type: Sealed (2RS-2AP-XL)
This bearing is suitable for precision industrial machinery, screw compressors, spindle drives, and other applications requiring reliable axial and radial force support with minimal maintenance requirements.
