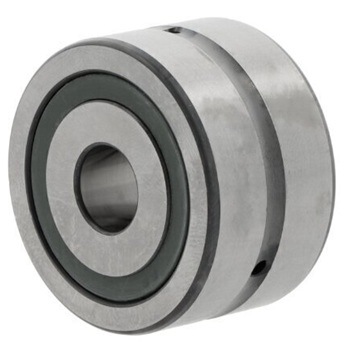

ZKLN1747-2Z-XL INA Axial Angular Contact Bearing 17mm x 47mm x 25mm
ZKLN1747-2Z-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in screw drive applications. The bearing delivers exceptional performance where high accuracy, superior load carrying capacity, rigidity, and low friction are critical requirements.
Key Performance Characteristics:
- 60 degree contact angle enables support for both radial and high axial forces simultaneously
- Maintenance-free or low-maintenance sealed design
- Bi-directional load capacity for versatile mounting orientations
- Gap seals on both sides provide reliable contamination protection
- Compact 17mm bore diameter ideal for precision applications
Design & Installation:
The ZKLN bearing range is mounted in a housing bore with the bearing outer ring axially located by a cover. This design ensures stable positioning and simplified integration into various mechanical assemblies.
Specifications:
- Bore Diameter: 17mm
- Outer Diameter: 47mm
- Width: 25mm
- Sealing Type: Shielded with gap seals on both sides
- Double Direction capability
- Equivalent to: ZKLN1747-2Z, ZKLN17472Z
Ideal Applications:
Perfect for precision machinery requiring high-speed screw drives, ball screws, spindle assemblies, and industrial automation equipment where reliability, accuracy, and combined radial and axial loading conditions are paramount.
