Quick Code: BB-137572

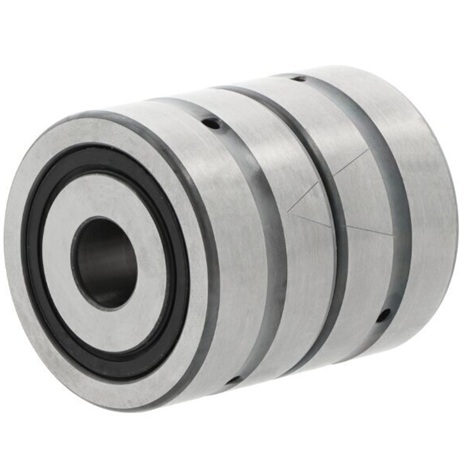

ZKLN1747-2RS-2AP-XL INA Axial Angular Contact Bearing 17mm x 47mm x 50mm
INA Axial Angular Contact Bearing ZKLN1747-2RS-2AP-XL
This premium axial angular contact bearing from INA is engineered for highly dynamic applications requiring exceptional performance, precision, and reliability. With a 60 degree contact angle, the bearing effectively supports both radial and high axial forces, making it ideal for demanding operating conditions in screw drive systems and similar applications.
Key Features:
- Double direction design for versatile load handling
- Matched pair configuration for optimized performance
- Lip seals on both sides for superior protection and maintenance-free operation
- High accuracy and rigidity for precision applications
- Low friction operation for improved efficiency
- Maintenance-free or low-maintenance performance
Technical Specifications:
- Brand: INA
- Inside Diameter: 17mm
- Outside Diameter: 47mm
- Width: 50mm
- Sealing Type: Lip seals (both sides)
Design & Installation:
The ZKLN bearing range features a specialized design for housing bore mounting, with the bearing outer ring axially located by a cover. This configuration enables straightforward integration into your assembly while providing excellent load distribution and stability.
Applications:
These bearings are particularly suited for screw drive systems and other highly dynamic applications where high load capacity, rigidity, precision, and maintenance-free performance are critical requirements.
