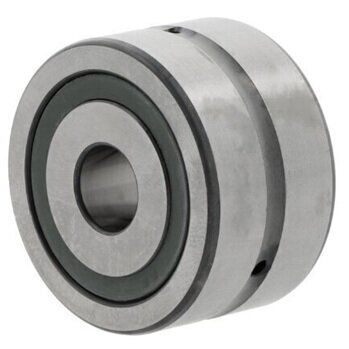

ZKLN1545-2Z-XL INA Axial Angular Contact Bearing 15mm x 45mm x 25mm
ZKLN1545-2Z-XL INA Axial Angular Contact Bearing
This compact precision axial angular contact bearing from INA is engineered for highly dynamic operating conditions in screw drive applications. With a 15mm bore, 45mm outer diameter, and 25mm width, the ZKLN1545-2Z-XL delivers exceptional performance in space-constrained installations while maintaining the high accuracy, rigidity, and low friction characteristics essential for demanding industrial applications.
Key Performance Features:
- 60 degree contact angle for simultaneous support of radial and high axial forces
- High load carrying capacity and rigidity for precision applications
- Superior accuracy and minimal friction for efficient power transmission
- Maintenance-free operation with sealed design for extended service life
- Double-direction bearing capability for bidirectional load support
Design & Construction:
- Bore Diameter: 15mm
- Outer Diameter: 45mm
- Width: 25mm
- Sealing Type: Gap seals on both sides for contamination protection
- Mounting: Mounted in a housing bore with outer ring axially located by a cover
- Variant: XL design optimized for compact installation envelopes
Ideal Applications:
This bearing is particularly well-suited for precision screw drive systems, ball screw assemblies, spindle mechanisms, and other compact high-speed rotating equipment requiring reliable combined axial and radial load capacity with minimal maintenance requirements. The sealed design provides excellent protection against contaminants while maintaining the low-friction performance necessary for optimal efficiency.
As part of the INA ZKLN bearing range, this bearing combines proven engineering excellence with reliability for industrial applications demanding superior precision and durability in compact form factors.
