Quick Code: BB-137555

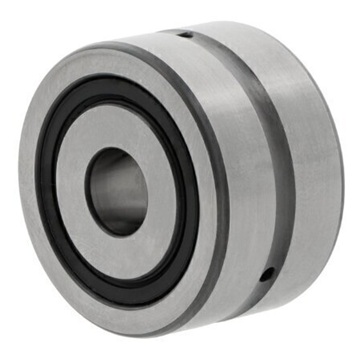

ZKLN1545-2RS-XL INA Axial Angular Contact Bearing 15mm x 45mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
15mm
Outside Dia
45mm
Sealing Type
Sealed
Width
25mm
Reference
ZKLN1545-2RS
Quick Order Code
BB-137555
Product Description
The ZKLN1545-2RS-XL INA Axial Angular Contact Bearing is a precision bearing engineered for highly dynamic operating conditions in screw drives and similar applications that demand exceptional accuracy, load capacity, rigidity, and low friction performance.
Key Performance Characteristics:
- Supports both radial and high axial forces simultaneously due to 60 degree contact angle
- Maintenance-free or low-maintenance design
- High rigidity and precision for demanding applications
- Compact design with 15mm bore and 45mm outer diameter
Design Features:
- ZKLN bearing range designed for mounting in a housing bore
- Bearing outer ring axially located by a cover for secure installation
- Double direction capability for bidirectional axial loads
- Lip seals on both sides for protection against contamination and maintenance-free operation
Ideal Applications:
This bearing is particularly suited for precision screw drive systems, spindle assemblies, and other high-speed, high-accuracy applications where combined radial and axial load handling is essential. The sealed design makes it suitable for environments requiring protection from dust and debris while maintaining low friction operation.
Specifications:
- Bore Diameter: 15mm
- Outer Diameter: 45mm
- Width: 25mm
- Sealing Type: Lip Sealed (both sides)
- Manufacturer: INA
