Quick Code: BB-137539

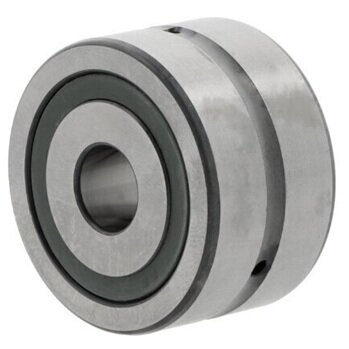

ZKLN1242-2Z-XL INA Axial Angular Contact Bearing 12mm x 42mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
12mm
Outside Dia
42mm
Sealing Type
Shielded
Width
25mm
Reference
ZKLN1242-2Z
Quick Order Code
BB-137539
Product Description
The ZKLN1242-2Z-XL INA Axial Angular Contact Bearing is a precision bearing engineered for highly dynamic operating conditions in screw drives and similar applications that demand exceptional accuracy, load capacity, rigidity, and low friction performance.
Key Performance Characteristics:
- Supports both radial and high axial forces simultaneously due to 60 degree contact angle
- Maintenance-free or low-maintenance design
- High rigidity and precision for demanding applications
- Compact design with 12mm bore and 42mm outer diameter
Design Features:
- ZKLN bearing range designed for mounting in a housing bore
- Bearing outer ring axially located by a cover for secure installation
- Double direction capability for bidirectional axial loads
- Shielded seals on both sides for protection against contamination
Ideal Applications:
This bearing is particularly suited for precision screw drive systems, spindle assemblies, and other high-speed, high-accuracy applications where combined radial and axial load handling is essential. The shielded design makes it suitable for environments requiring protection from dust and debris while maintaining low friction operation.
Specifications:
- Bore Diameter: 12mm
- Outer Diameter: 42mm
- Width: 25mm
- Sealing Type: Shielded (both sides)
- Manufacturer: INA
