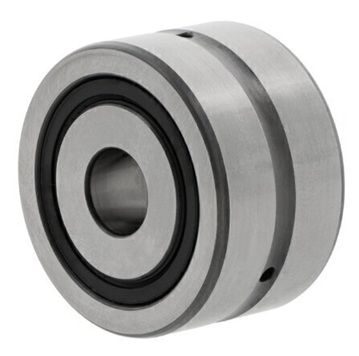

ZKLN1034-2RS-XL INA Axial Angular Contact Bearing 10mm x 34mm x 20mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
10mm
Outside Dia
34mm
Sealing Type
Sealed
Width
20mm
Reference
ZKLN1034-2RS
Quick Order Code
BB-137553
Product Description
ZKLN1034-2RS-XL INA Axial Angular Contact Bearing
This compact axial angular contact bearing is engineered for highly dynamic operating conditions in precision screw drive applications. With a 60 degree contact angle, it delivers exceptional performance where high accuracy, load capacity, rigidity, and low friction are essential requirements.
Key Capabilities:
- Supports both radial and high axial forces simultaneously
- Double-direction capability for bidirectional loading
- Maintenance-free or low-maintenance operation
- Sealed design with lip seals on both sides for protected operation
Design & Installation:
The ZKLN bearing range is specifically designed for direct housing bore mounting, with the outer ring axially located by a cover plate for secure, stable installation.
Specifications:
- Bore Diameter: 10mm
- Outside Diameter: 34mm
- Width: 20mm
- Sealing: Sealed (Lip seals both sides)
- Manufacturer: INA
Ideal for precision machinery, automation equipment, and industrial drive systems where compact size and reliable high-speed performance are critical.
