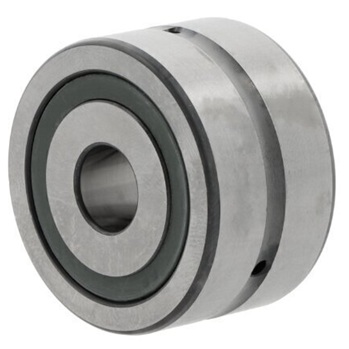

ZKLN0832-2Z-XL INA Axial Angular Contact Bearing 8mm x 32mm x 20mm
ZKLN0832-2Z-XL INA Axial Angular Contact Bearing
These precision bearings are engineered for highly dynamic operating conditions in screw drives and similar applications that demand exceptional performance. The ZKLN bearing series is ideal for applications requiring:
- High accuracy and precision
- High load carrying capacity
- High rigidity and stability
- Low friction operation
- Maintenance-free or low-maintenance service
Performance Capabilities:
These bearings effectively support both radial and high axial forces simultaneously, thanks to the optimized 60 degree contact angle design. This makes them suitable for challenging applications where combined loading conditions are present.
Design & Installation:
The ZKLN bearing range features a housing bore mounting design, with the bearing outer ring axially located by a cover. This installation approach provides secure positioning and simplifies integration into your equipment while maintaining excellent operational stability.
Sealing & Durability:
- Double direction capability
- Gap seals on both sides for effective protection against contaminants
- Shielded design supports maintenance-free operation in demanding environments
Specifications:
- Inside Diameter: 8mm
- Outside Diameter: 32mm
- Width: 20mm
- Sealing Type: Shielded with gap seals
