Bearings
Angular Contact Bearings
Axial Angular Contact Bearings
Quick Code: BB-137514

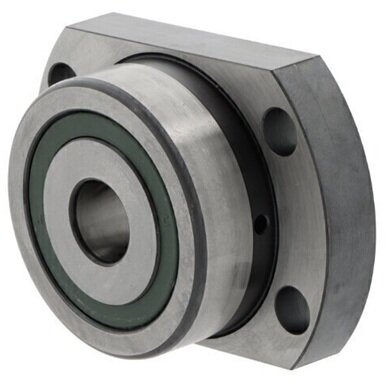

ZKLFA1563-2Z INA Axial Angular Contact Bearing 15mm x 42mm x 25mm
ZKLFA1563-2Z INA Axial Angular Contact Bearing
These precision bearings are engineered for highly dynamic operating conditions in screw drives and similar applications that demand high accuracy, exceptional load carrying capacity, superior rigidity, and low friction performance. They are ideal for applications requiring maintenance-free or low-maintenance operation.
Key Performance Characteristics:
- Support both radial forces and high axial forces due to 60 degree contact angle
- High accuracy and load carrying capacity for demanding applications
- Superior rigidity and low friction design
- Double direction capability for bidirectional loads
- Gap seals on both sides for protection and maintenance-free operation
Design Features:
The ZKLFA bearing range features a distinctive stepped outer ring with a flange design. The flattened areas on both sides of the flange allow for an exceptionally compact radial design envelope in adjacent construction, making these bearings ideal for space-constrained applications where minimizing overall dimensions is critical.
Specifications:
- Bore Diameter: 15mm
- Outer Diameter: 42mm
- Width: 25mm
- Sealing Type: Shielded (both sides)
- Manufacturer: INA
Typical Applications:
Perfect for precision screw drives, industrial automation equipment, and other high-speed, high-load applications where reliability and compact design are essential.
