Quick Code: BB-137510

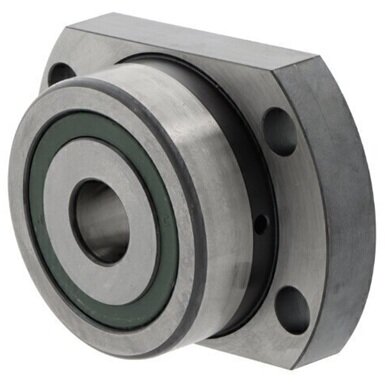

ZKLFA0630-2Z INA Axial Angular Contact Bearing 6mm x 19mm x 12mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
6mm
Outside Dia
19mm
Sealing Type
Shielded
Width
12mm
Reference
ZKLFA0630-2Z
Quick Order Code
BB-137510
Product Description
ZKLFA0630-2Z INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for demanding screw drive applications and other highly dynamic operating conditions. With its compact 6mm bore and 19mm outer diameter, it delivers exceptional performance in space-constrained assemblies.
Key Features:
- 60 degree contact angle for superior radial and axial load capacity
- Double-direction support capability
- Stepped outer ring with flattened flanges for minimal radial envelope footprint
- Gap seals on both sides for maintenance-free or low-maintenance operation
- High accuracy and rigidity for precision applications
- Low friction design for efficient operation
Design Specifications:
- Bore Diameter: 6mm
- Outer Diameter: 19mm
- Width: 12mm
- Sealing Type: Shielded (Double-sided gap seals)
- Manufacturer: INA
Applications:
Ideal for screw drives, precision machinery, and compact assemblies requiring both radial and axial load support in high-speed, high-accuracy environments. The space-saving design makes it particularly suitable for applications with limited radial design envelope requirements.
