Quick Code: BB-137464

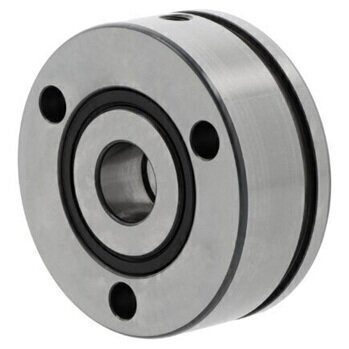

ZKLF50115-2RS-XL INA Axial Angular Contact Bearing 50mm x 115mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
50mm
Outside Dia
115mm
Sealing Type
Sealed
Width
34mm
Reference
ZKLF50115-2RS
Quick Order Code
BB-137464
Product Description
ZKLF50115-2RS-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for demanding, highly dynamic applications in screw drive systems. With a 50mm bore, 115mm outer diameter, and 34mm width, the ZKLF50115-2RS-XL delivers exceptional performance where high accuracy, load capacity, rigidity, and low friction are critical requirements.
Key Capabilities:
- Supports both radial and high axial forces with 60 degree contact angle design
- Maintenance-free or low-maintenance operation
- Double direction bearing capability
- Sealed design with lip seals on both sides for enhanced protection
- Direct screw mounting to adjacent construction or radial locating bore for flexible installation
Applications:
Ideal for precision screw drive systems and other highly dynamic applications requiring sustained performance under combined radial and axial loading. The robust sealed design makes it suitable for challenging operating environments where contamination protection is essential.
Specifications:
- Bore Diameter: 50mm
- Outer Diameter: 115mm
- Width: 34mm
- Manufacturer: INA
- Sealing Type: Sealed (2RS)
