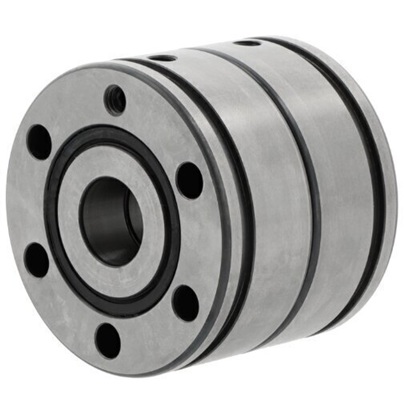

ZKLF50115-2RS-2AP-XL INA Axial Angular Contact Bearing 50mm x 115mm x 68mm
ZKLF50115-2RS-2AP-XL INA Axial Angular Contact Bearing
These precision bearings are engineered for highly dynamic operating conditions in screw drives and similar applications that demand exceptional performance. The ZKLF bearing series is ideal for applications requiring:
- High accuracy and precision
- High load carrying capacity
- High rigidity and stability
- Low friction operation
- Maintenance-free or low-maintenance service
Performance Capabilities:
These bearings effectively support both radial and high axial forces simultaneously, thanks to the optimized 60 degree contact angle design. This makes them suitable for challenging applications where combined loading conditions are present. The matched pair configuration further enhances load distribution and bearing life in demanding environments.
Design & Installation:
The ZKLF bearing range features a direct-mount design, allowing for screw mounting directly onto adjacent construction or installation in a radial locating bore. This flexible mounting approach simplifies integration into your equipment and reduces installation complexity.
Sealing & Durability:
- Double direction capability
- Matched pair configuration for optimal performance
- Lip seals on both sides for enhanced protection against contaminants
- Sealed design supports maintenance-free operation in demanding environments
Specifications:
- Inside Diameter: 50mm
- Outside Diameter: 115mm
- Width: 68mm
- Sealing Type: Sealed with lip seals
- Configuration: Matched pair
- Brand: INA
