Quick Code: BB-137504

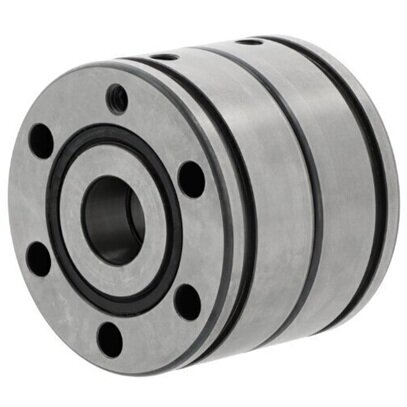

ZKLF3080-2RS-2AP-XL INA Axial Angular Contact Bearing 30mm x 80mm x 56mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
30mm
Outside Dia
80mm
Sealing Type
Sealed
Width
56mm
Reference
ZKLF3080-2RS-2AP
Quick Order Code
BB-137504
Product Description
ZKLF3080-2RS-2AP-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic applications requiring exceptional accuracy, load capacity, rigidity and low-friction operation. The 30mm x 80mm x 56mm configuration with sealed design makes it ideal for screw drive systems and similar demanding industrial applications.
Key Performance Features:
- 60 degree contact angle enables support of both radial and high axial forces simultaneously
- High load carrying capacity and rigidity for precision applications
- Low friction design for efficient operation
- Maintenance-free or low-maintenance operation
Design Specifications:
- Double direction capability for bidirectional axial loads
- Matched bearing pair for optimized performance
- Lip seals on both sides providing protection against contamination
- Direct screw mounting on adjacent construction or radial locating bore
Applications:
The ZKLF3080-2RS-2AP-XL is particularly suited for:
- Precision screw drive systems
- High-speed rotating equipment requiring axial load support
- Industrial machinery with strict accuracy requirements
- Applications demanding sealed, maintenance-reduced bearing solutions
Brand: INA | Bore Diameter: 30mm | Outer Diameter: 80mm | Width: 56mm | Sealing: Sealed (Lip Seals)
