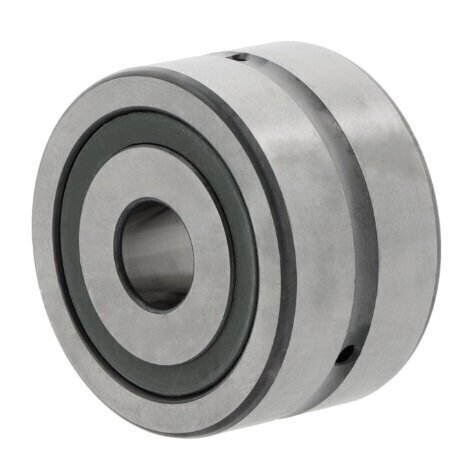

BSN4075-DDUHP2B NSK Axial Angular Contact Ball Bearing 40mm x 75mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
Without fixing holes
Inside Dia
40mm
Lubrication hole
With lubrication groove
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
75mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
34mm
Reference
BSN4075-DDUHP2B
Additional Reference:
10141164
Quick Order Code
BB-522185
Product Description
BSN4075 DDUHP2B NSK Axial Angular Contact Ball Bearing
This precision axial angular contact bearing from NSK is engineered for highly dynamic operating conditions where high accuracy, load capacity, rigidity, and low friction are critical. With dimensions of 40mm bore x 75mm outer diameter x 34mm width, it delivers exceptional performance in demanding industrial and precision applications.
Key Performance Features:
- 60 degree contact angle enables support of both radial and high axial forces simultaneously
- Double direction capability for versatile bi-directional axial load handling
- Polyamide cage construction for optimal ball guidance and reduced friction
- Low friction design for improved efficiency and extended bearing life
- High rigidity and precision for applications demanding exceptional accuracy
- Sealed design for effective protection against contaminants in demanding environments
- Integrated lubrication groove for convenient maintenance and optimal performance
Design & Specifications:
- Standard bearing steel construction for durability and reliability
- Tolerance class P2 / ABEC 9 for superior precision and dimensional accuracy
- Without fixing holes for flexible mounting configurations
- Operating temperature range: -20 degreeC to +120 degreeC
- Single bearing configuration
- Sealed bearing design for maintenance-free operation
Typical Applications:
The BSN4075 DDUHP2B is particularly well-suited for:
- High-precision machine tool spindles and CNC machinery
- Precision engineering equipment requiring exceptional accuracy
- Industrial machinery with combined radial and axial load requirements
- Heavy-duty applications demanding robust load handling and minimal friction
- Equipment operating in challenging environments requiring sealed protection
- High-speed rotating systems where reliability and precision are essential
The BSN4075 DDUHP2B combines NSK's engineering expertise with robust sealed construction and ABEC 9 tolerance class precision, making it an excellent choice for critical industrial and precision engineering operations.
