Quick Code: BB-522237

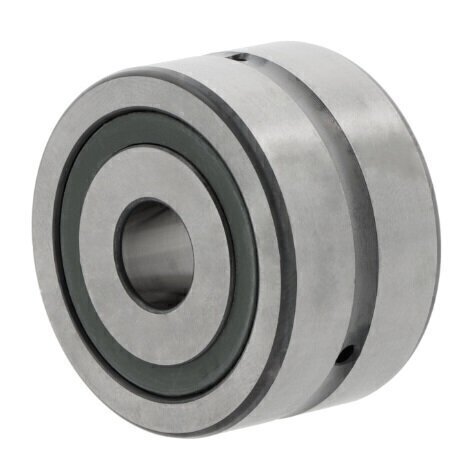

BSN1747-DDUHP2B NSK Axial Angular Contact Ball Bearing 17mm x 47mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
Without fixing holes
Inside Dia
17mm
Lubrication hole
With lubrication groove
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
47mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
25mm
Reference
BSN1747-DDUHP2B
Additional Reference:
10141420
Quick Order Code
BB-522237
Product Description
The BSN1747 DDUHP2B NSK Axial Angular Contact Ball Bearing is a precision-engineered double-direction bearing designed for highly dynamic applications requiring exceptional accuracy, load capacity, and rigidity. With its distinctive 60-degree contact angle, this bearing excels at supporting both radial and significant axial forces in either direction, making it ideal for demanding industrial and mechanical applications.
Key Specifications:
- Brand: NSK
- Bore Diameter: 17mm
- Outer Diameter: 47mm
- Width: 25mm
- Contact Angle: 60 degrees
- Operating Direction: Double direction bearing
- Cage Material: Polyamide cage for reduced friction and optimal performance
- Sealing Type: Sealed design for enhanced protection
- Lubrication: With lubrication groove for improved lubrication management
- Fixing: Without fixing holes
- Material: Standard bearing steel
- Tolerance Class: P2 / ABEC 9 for high precision
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Product Type: Single bearing
Applications:
This axial angular contact bearing is suitable for applications including:
- Precision machinery and equipment
- Industrial spindles and drive systems
- High-speed rotating assemblies
- Applications requiring rigidity and low friction
- Systems demanding bidirectional axial and radial load capacity
- Sealed bearing assemblies for protected environments
With its specialized double-direction design, sealed construction, and NSK quality assurance, this bearing delivers reliable performance in demanding environments where precision, durability, and bidirectional load support are critical.
