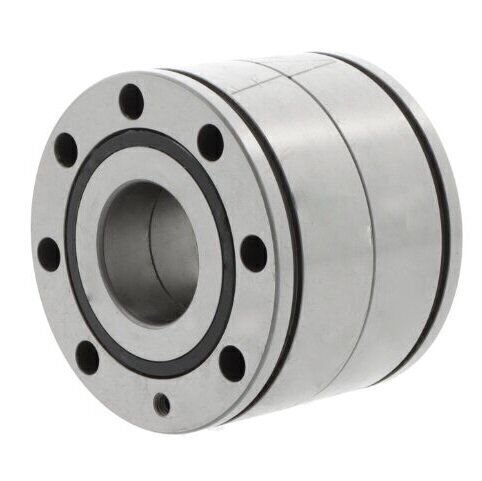

BSF50115-DDUHP2BDT Matched Pair NSK Axial Angular Contact Ball Bearing 50mm x 68mm x 115mm
BSF50115 DDUHP2BDT NSK Matched Pair Axial Angular Contact Ball Bearing
This premium matched pair axial angular contact bearing from NSK represents the highest precision standard for demanding industrial applications. Engineered with a 50mm bore and 68mm outer diameter, this bearing delivers exceptional performance in highly dynamic environments requiring simultaneous support of both radial and high axial forces with outstanding accuracy and reliability.
Key Performance Features:
- 60 degree contact angle design for optimal support of combined radial and high axial loads
- Double direction bearing configuration for versatile bidirectional load handling capabilities
- Matched pair design (2pcs) for perfectly synchronized operation and optimized load distribution
- Superior precision meeting P2/ABEC 9 tolerance class standards for ultra-high accuracy applications
- Sealed design with dual lubrication grooves for enhanced protection and optimized lubrication delivery
- Exceptional rigidity and low friction operation for improved efficiency
Technical Specifications:
- Brand: NSK
- Inside Diameter: 50mm
- Outside Diameter: 68mm
- Width: 115mm
- Cage Material: Polyamide cage for lightweight, durable operation
- Contact Angle: 60 degree
- Sealing Type: Sealed design for superior protection and extended service life
- Lubrication: Two lubrication grooves for optimized lubrication delivery and maintenance
- Material: Standard bearing steel to NSK quality standards
- Operating Direction: Double direction (bidirectional)
- Tolerance Class: P2/ABEC 9 for ultra-precision performance
- Temperature Range: -20 degreeC to +120 degreeC for reliable operation across varied environments
- Mounting: With fixing holes for secure, stable installation
Design & Installation:
The matched pair configuration ensures optimal load distribution, performance stability, and synchronized operation between both bearings. This precision engineering is essential for applications demanding exceptional accuracy and reliability. The dual lubrication grooves facilitate efficient lubrication management, while the sealed design minimizes contamination and extends bearing life. Fixing holes enable secure mounting for applications requiring maximum stability and vibration resistance.
Ideal Applications:
These premium matched pair bearings are particularly well-suited for:
- High-precision spindle systems and machine tool applications
- Precision screw drive systems and ball screw assemblies
- High-speed rotary tables and positioning equipment
- Automated precision machinery and assembly systems
- Industrial applications requiring combined radial and axial load handling with superior accuracy
- Mission-critical equipment where precision and reliability are paramount
