Quick Code: BB-522236

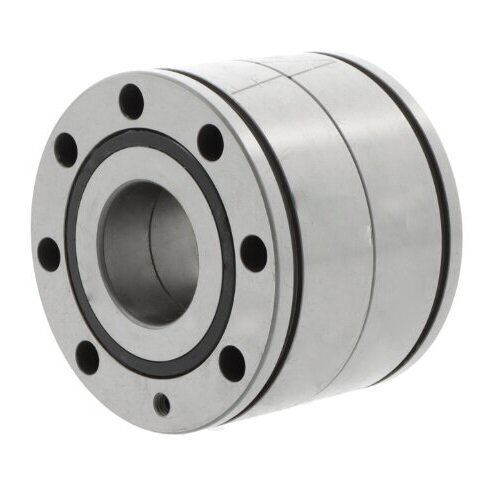

BSF50115-DDUHP2B NSK Axial Angular Contact Ball Bearing 50mm x 115mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
50mm
Lubrication hole
With two lubrication grooves
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
115mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
34mm
Reference
BSF50115-DDUHP2B
Additional Reference:
10141418
Quick Order Code
BB-522236
Product Description
BSF50115 DDUHP2B NSK Axial Angular Contact Ball Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in demanding applications requiring exceptional accuracy, load capacity, rigidity, and low friction performance. With a 50mm bore and 115mm outer diameter, the BSF50115 DDUHP2B delivers reliable performance in applications where both radial and axial forces must be efficiently managed.
Key Performance Characteristics:
- Supports both radial and high axial forces with precision 60 degree contact angle design
- Double direction load capacity for bidirectional force handling
- High rigidity and accuracy for precision machinery applications
- Low friction performance for extended service life and energy efficiency
- Sealed design to protect against contaminants and maintain optimal lubrication
Design Features:
- NSK premium bearing steel construction for superior durability
- Polyamide cage for reliable guidance and reduced wear
- Integrated fixing holes for direct mounting on adjacent construction
- Two integrated lubrication grooves for efficient grease distribution
- Sealed bearing design for maintenance-free or low-maintenance operation
- Tolerance class P2 / ABEC 9 for high precision applications
Specifications:
- Bore Diameter: 50mm
- Outer Diameter: 115mm
- Width: 34mm
- Contact Angle: 60 degree
- Sealing Type: Sealed
- Operating Direction: Double direction bearing
- Cage Material: Polyamide
- Tolerance Class: P2 / ABEC 9
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Manufacturer: NSK
- Reference: BSF50115DDUHP2B
Ideal for precision spindle assemblies, machine tool applications, screw drive systems, and other high-performance industrial machinery where reliability, accuracy, and durability are critical requirements.
