Quick Code: BB-522180

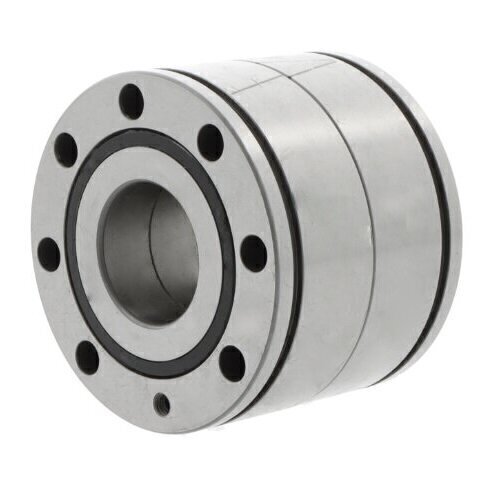

BSF3080-DDUHP2B NSK Axial Angular Contact Ball Bearing 30mm x 80mm x 28mm
The BSF3080 DDUHP2B NSK Axial Angular Contact Ball Bearing is a premium sealed bearing engineered for highly dynamic applications demanding exceptional precision, load capacity, and reliability. This double-direction bearing combines advanced sealing technology with optimized lubrication delivery, making it ideal for applications where contamination protection and extended service life are essential.
Key Performance Characteristics
- Supports both radial and high axial forces thanks to the 60 degree contact angle
- Double directional load capability for versatile mounting configurations and bidirectional force support
- Sealed design provides superior protection against contamination and environmental ingress
- Polyamide cage construction for lightweight performance and reduced friction
- Two lubrication grooves enable efficient grease/oil delivery for extended bearing life
- P2/ABEC 9 tolerance class ensures precision performance in demanding applications
- Standard bearing steel material guarantees durability and reliability
Design & Construction
- Sealed sealing type ideal for applications requiring protection from dust, moisture, and contaminants
- With fixing holes for secure, streamlined integration into existing housing designs
- With two lubrication grooves for optimized lubrication management and maintenance accessibility
- P2/ABEC 9 tolerance class for precision applications requiring tight dimensional control and high rotational accuracy
Specifications
- Bore Diameter: 30mm
- Outer Diameter: 80mm
- Width: 28mm
- Contact Angle: 60 degree
- Cage Material: Polyamide
- Operating Direction: Double direction
- Sealing Type: Sealed
- Lubrication: Two lubrication grooves
- Fixing: With fixing holes
- Tolerance Class: P2/ABEC 9
- Temperature Range: -20 degreeC to +120 degreeC
- Manufacturer: NSK
- Reference: BSF3080DDUHP2B
Ideal Applications
Perfect for precision machinery, industrial spindles, high-speed rotary equipment, and applications operating in contaminated or harsh environments where sealed protection and reliable axial/radial load support are critical. The double-direction capability makes this bearing particularly suitable for applications requiring bidirectional force management. Ideal for automotive drivetrains, machine tool spindles, and industrial gearboxes where lubrication accessibility and contamination resistance are essential for optimal performance and longevity.
