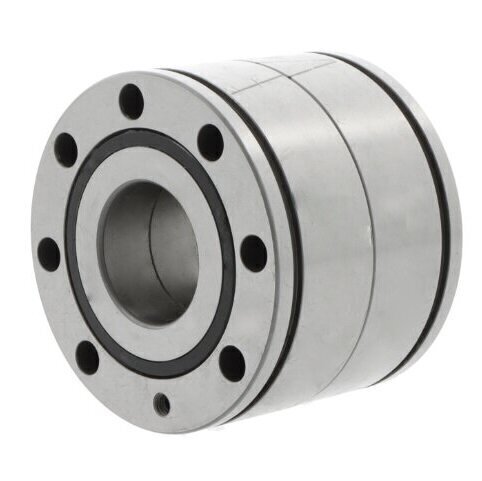

BSF1762-DDUHP2B NSK Axial Angular Contact Ball Bearing 17mm x 62mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
17mm
Lubrication hole
With two lubrication grooves
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
62mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
25mm
Reference
BSF1762-DDUHP2B
Additional Reference:
10141152
Quick Order Code
BB-522175
Product Description
The BSF1762 DDUHP2B NSK Axial Angular Contact Ball Bearing is a precision-engineered bearing designed for highly dynamic applications requiring exceptional accuracy, load capacity, rigidity, and low friction performance. This double-direction bearing combines advanced construction with high-performance specifications to reliably handle both radial and significant axial forces in demanding industrial environments.
Key Specifications:
- Bore Diameter: 17mm
- Outer Diameter: 62mm
- Width: 25mm
- Contact Angle: 60 degrees
- Tolerance Class: P2 / ABEC 9 (precision grade)
- Brand: NSK
Technical Features:
- Construction: Polyamide cage for optimal performance, reduced maintenance, and durability
- Material: Standard bearing steel for reliable strength and consistent longevity
- Sealing: Sealed design for protected operation and maintenance-free performance
- Operating Direction: Double direction capability for bidirectional axial loads
- Lubrication: Equipped with two lubrication grooves for enhanced operational efficiency
- Fixing: Supplied with fixing holes for secure, direct mounting
- Temperature Range: -20 degreeC to +120 degreeC for versatile industrial environments
Applications:
Ideal for precision applications including:
- Screw drive mechanisms and spindle assemblies
- Machine tool equipment requiring high precision
- Compact rotary machinery and precision industrial equipment
- Applications requiring sustained bidirectional loading with minimal maintenance
- Systems where sealed, low-friction operation is critical
The BSF1762 DDUHP2B delivers the precision, reliability, and durability demanded by modern compact industrial applications, backed by NSK's renowned engineering expertise and ABEC 9 precision standards.
