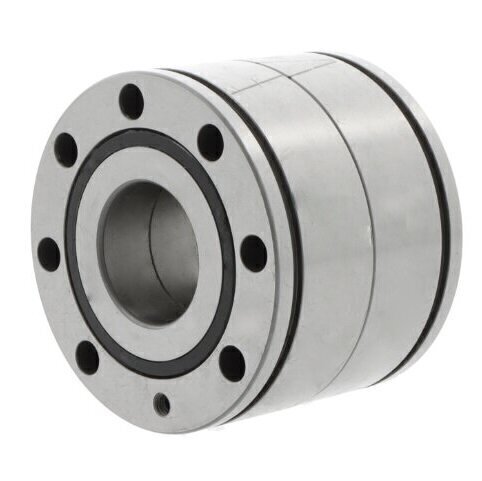

BSF1560-DDUHP2B NSK Axial Angular Contact Ball Bearing 15mm x 60mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
15mm
Lubrication hole
With two lubrication grooves
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
60mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
25mm
Reference
BSF1560-DDUHP2B
Additional Reference:
10134541
Quick Order Code
BB-519689
Product Description
The BSF1560 DDUHP2B NSK Axial Angular Contact Ball Bearing is a precision-engineered bearing designed for demanding applications requiring simultaneous radial and axial load support. With dimensions of 15mm x 60mm x 25mm, this compact yet robust bearing delivers exceptional performance in highly dynamic operating conditions.
Key Capabilities
- 60 degree contact angle design enables support of both radial and high axial forces simultaneously
- Double direction operation provides versatile mounting configurations for flexible system design
- Sealed design offers maintenance-free or low-maintenance operation in contaminated environments
- P2/ABEC 9 tolerance class ensures superior precision and accuracy for critical applications
- Wide operating temperature range from -20 degreeC to +120 degreeC accommodates diverse environmental conditions
Design & Construction
- Standard bearing steel construction for durability and reliability
- Polyamide cage for lightweight operation and reduced friction
- Fixing holes integrated for secure, direct mounting in housing bore
- Two lubrication grooves enable optimal lubrication flow and extended bearing life
- Single bearing configuration for space-constrained applications
Ideal Applications
This bearing is particularly well-suited for:
- Precision screw drive systems requiring high accuracy and load capacity
- Industrial machinery with combined radial and axial load requirements
- Compact equipment demanding rigidity and low friction performance
- Applications requiring extended service life with minimal maintenance
- Systems operating across varying temperature environments
The sealed design, precision engineering, and robust NSK construction make this bearing an excellent choice for applications where reliability, accuracy, and longevity are essential.
