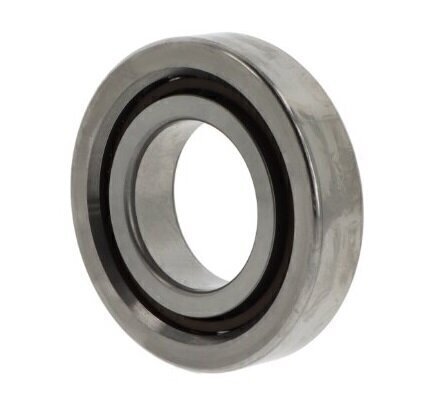

BSD2562 CGA SKF Axial Angular Contact Ball Bearing 25mm x 62mm x 15mm
BSD2562 CGA SKF Axial Angular Contact Ball Bearing
This precision axial angular contact bearing from SKF is engineered for single-direction applications requiring reliable performance under combined radial and axial loading. With a 62 degree contact angle and compact dimensions, this bearing delivers high accuracy, excellent load capacity, and low friction characteristics ideal for precision machinery and industrial applications.
Key Performance Features:
- 62 degree contact angle for optimized support of both radial and axial forces
- Single-direction design for dedicated load handling applications
- High precision with dimensional accuracy P4 (ABEC 7) and running accuracy P2 standards
- Polyamide cage construction for lightweight, durable operation
- Light preload for reduced friction and extended bearing life
- Compact form factor: 25mm bore x 62mm outer diameter x 15mm width
- Operating temperature range from -20 degreeC to +120 degreeC for standard industrial environments
Design & Specifications:
- Reference: BSD2562CGA
- Bore Diameter: 25mm
- Outer Diameter: 62mm
- Width: 15mm
- Sealing Type: Open design
- Cage Material: Polyamide
- Tolerance Class: P4 / ABEC 7 (dimensional accuracy), P2 (running accuracy)
- Material: Standard bearing steel
- Operating Direction: Single-direction bearing
- Preload: Light preload
- Fixing: Without fixing holes
- Lubrication: Without lubrication groove
- Product Range: Single bearing
Ideal Applications:
This bearing is well-suited for precision spindle systems, screw drive assemblies, positioning equipment, and other industrial machinery where precise axial and radial load handling is essential. The light preload ensures smooth operation with minimal friction, while the open design allows for flexible lubrication strategies tailored to specific application requirements. The compact dimensions make it ideal for space-constrained installations in OEM equipment and precision machinery.
