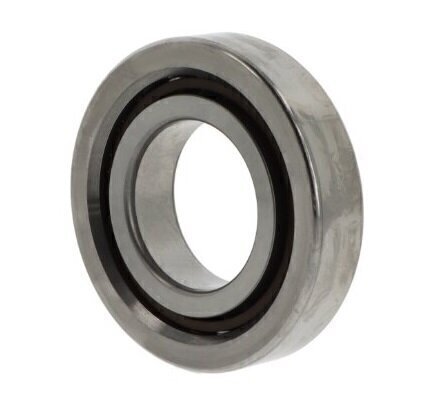

BSA210 CGB SKF Axial Angular Contact Ball Bearing 50mm x 90mm x 20mm
BSA210 CGB SKF Axial Angular Contact Ball Bearing
This precision axial angular contact bearing from SKF is engineered for demanding applications requiring simultaneous radial and axial load handling. The BSA210 CGB combines advanced engineering with reliable performance in highly dynamic operating conditions.
Key Performance Features:
- 62 degree contact angle design for superior load distribution and enhanced rigidity
- Simultaneous support of radial and high axial forces
- Single direction operating capability for optimized mounting
- High accuracy and precision for critical applications
- Exceptional rigidity and stability under load
- Low friction operation for efficient and smooth performance
Design & Construction:
- Standard bearing steel material for proven durability and reliability
- Polyamide cage for reliable ball retention and consistent smooth operation
- Without fixing holes for streamlined design integration
- P4 dimensional accuracy (ABEC 7) and P2 running accuracy (AB) tolerance class for precision performance
- Single bearing configuration
Sealing & Operating Conditions:
- Open sealing design allowing direct access for maintenance and lubrication
- Without lubrication groove for simplified construction
- Operating temperature range: -20 degreeC to +120 degreeC
- Suitable for applications requiring manual lubrication management
Specifications:
- Inside Diameter: 50mm
- Outside Diameter: 90mm
- Width: 20mm
- Contact Angle: 62 degree
- Brand: SKF
- Sealing Type: Open
- Cage Material: Polyamide
- Tolerance Class: P4/ABEC 7 (dimensional), P2/AB (running)
Typical Applications:
The BSA210 CGB is ideal for industrial machinery, precision spindles, gearboxes, and mechanical systems where combined axial and radial loading with directional stability are essential requirements. Its robust construction and high precision make it suitable for moderate to high-speed applications in demanding industrial environments.
