Quick Code: BB-515473

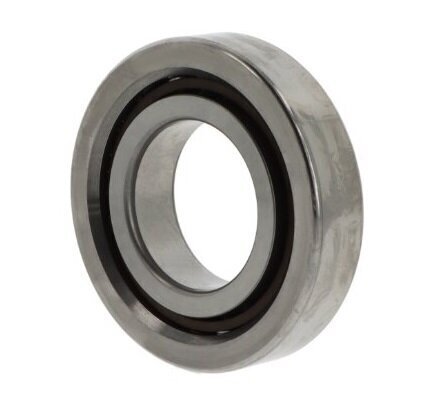

BSA206 CGB SKF Axial Angular Contact Ball Bearing 30mm x 62mm x 16mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
SKF
Cage
Polyamide cage
Contact angle
62 degree
Fixing
Without fixing holes
Inside Dia
30mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
62mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-20 to +120 °C
Tolerance class
Dimensional accuracy P4 or ABEC 7, running accuracy P2 or AB
Width
16mm
Reference
BSA206
Additional Reference:
10122190
Quick Order Code
BB-515473
Product Description
BSA206 CGB SKF Axial Angular Contact Ball Bearing
This precision axial angular contact bearing is engineered for dynamic applications requiring high accuracy, reliable load capacity, and consistent performance. With a 30mm bore and 62mm outer diameter, it delivers dependable operation in demanding industrial environments while supporting both radial and significant axial forces.
Key Performance Features:
- Supports both radial and axial forces with optimized 62 degree contact angle for enhanced load distribution
- Single direction bearing design for unidirectional load support applications
- Rigid construction for precision alignment and minimal deflection
- Wide temperature range from -20 degreeC to +120 degreeC for versatile operating conditions
- High precision design suitable for industrial machinery and precision applications
- Low friction operation for improved efficiency and reduced heat generation
Design & Construction:
- Polyamide cage design for reliable performance and durability
- Open sealing type allowing for application-specific protection methods
- Standard bearing steel construction for superior strength and performance
- Tolerance class P4 (dimensional accuracy) and P2 (running accuracy) equivalent to ABEC 7 and AB standards respectively
- Without fixing holes for flexible mounting solutions
- No lubrication groove for simplified maintenance requirements
Specifications:
- Reference: BSA206CGB
- Brand: SKF
- Bore diameter: 30mm
- Outside diameter: 62mm
- Width: 16mm
- Contact angle: 62 degree
- Cage material: Polyamide
- Temperature range: -20 degreeC to +120 degreeC
- Single bearing (not a matched pair)
- Product range: Single bearing
Ideal for: Precision spindles, gearboxes, machine tool applications, automotive assemblies, and other compact industrial machinery requiring reliable axial and radial load support with excellent accuracy and consistent performance in space-constrained applications.
