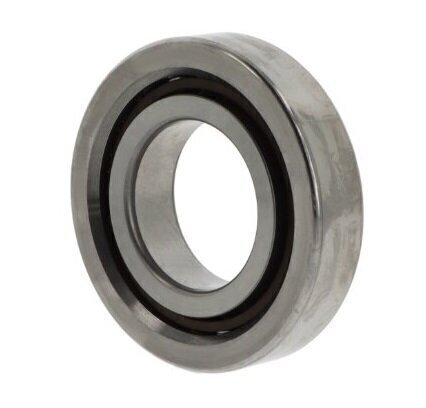

BSA205 CGA SKF Axial Angular Contact Ball Bearing 25mm x 52mm x 15mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
SKF
Cage
Polyamide cage
Contact angle
62 degree
Fixing
Without fixing holes
Inside Dia
25mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
52mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-20 to +120 °C
Tolerance class
Dimensional accuracy P4 or ABEC 7, running accuracy P2 or AB
Width
15mm
Reference
BSA205
Additional Reference:
10122187
Quick Order Code
BB-515470
Product Description
SKF BSA205 CGA Axial Angular Contact Ball Bearing
The BSA205 CGA is a precision axial angular contact ball bearing from SKF, engineered for applications demanding high accuracy, rigidity, and reliable performance under combined radial and axial loads. With its 62-degree contact angle design, this bearing efficiently handles dynamic forces while maintaining low friction characteristics.
Technical Specifications:
- Reference Number: BSA205CGA
- Brand: SKF
- Bore Diameter: 25mm
- Outer Diameter: 52mm
- Width: 15mm
- Contact Angle: 62 degrees
- Cage Material: Polyamide
- Bearing Material: Standard bearing steel
- Sealing Type: Open design
- Operating Mode: Single direction bearing
- Tolerance Class: P4 (ABEC 7) dimensional accuracy; P2 (ABEC 9) running accuracy
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Lubrication: Without lubrication groove
- Fixing Configuration: Without fixing holes
- Product Type: Single bearing
Key Benefits:
- High precision design suitable for demanding applications
- Exceptional load capacity with dual radial and axial force support
- Low friction operation for efficient performance
- Lightweight polyamide cage for reduced inertia
- Wide temperature operating range for versatile applications
Typical Applications:
Ideal for precision machinery, automotive systems, industrial equipment, and other applications requiring high-accuracy angular contact bearing performance with combined loading capabilities.
