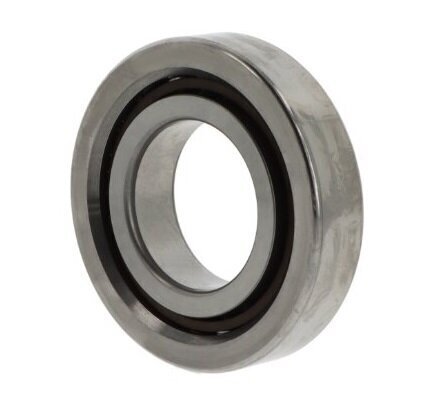

7602045-TVP FAG Axial Angular Contact Ball Bearing 45mm x 85mm x 19mm
7602045-TVP FAG Axial Angular Contact Ball Bearing
This precision axial angular contact bearing from FAG is engineered for dynamic applications requiring excellent performance, accuracy, and reliability. The 7602045-TVP is designed to support both radial and high axial forces in demanding industrial environments, delivering superior load-carrying capacity and rigidity.
Design & Performance Characteristics:
- 60 degree contact angle for optimal support of combined radial and axial loading
- Single direction bearing capability for unidirectional load handling
- High accuracy and precision engineering for critical applications
- Exceptional rigidity and low friction operation
- Compact design with 45mm bore and 19mm width for space-constrained installations
Construction & Installation:
- Polyamide cage for reliable performance and durability
- Standard bearing steel construction for proven reliability
- Open sealing type for applications where environmental protection is managed externally
- Without fixing holes for flexible mounting configurations
- No lubrication groove for simplified maintenance in adequately lubricated systems
- Special tolerance class for enhanced precision requirements
Technical Specifications:
- Brand: FAG
- Inside Diameter: 45mm
- Outside Diameter: 85mm
- Width: 19mm
- Contact Angle: 60 degree
- Operating Direction: Single direction
- Sealing Type: Open
- Tolerance Class: Special tolerance
- Material: Standard bearing steel
- Cage: Polyamide
- Temperature Range: -30 degreeC to +120 degreeC
- Fixing: Without fixing holes
Ideal Applications:
The 7602045-TVP is particularly well-suited for precision screw drives, spindle assemblies, machine tool applications, and other high-speed operations where accuracy, rigidity, and controlled axial load capacity are critical performance requirements. Its compact design makes it ideal for space-limited installations requiring single-direction load support.
Trust FAG's engineering excellence for reliable bearing solutions that perform consistently in demanding operating conditions.
